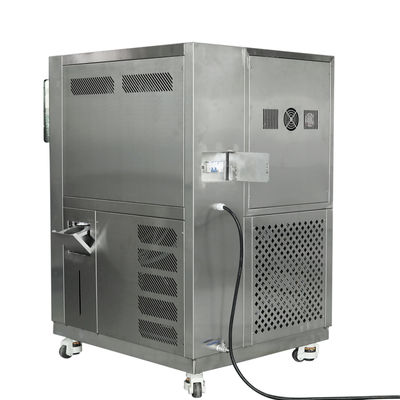

Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃

Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃
Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃ Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃ Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃ Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃

Large Image :  Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃

Product Details:
Place of Origin: China
Brand Name: LIYI
Certification: CE,ISO 9001: 2008
Model Number: LY-2150
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Standard Export Wooden Case
Delivery Time: Within 15 days after receiving the payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 100 piece/month

Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃

Description
Test Chamber Size: 150L, All Size Can Customize Temperature Range: -70C~+150C
Humidity Range: 20%~98% Compressor Bvrand: Tecumseh
Controller Brand: TEMI880 Controller Type: PLC Color Touch Screen
Chamber Color: All Can Customize Material: Stainless Steel
High Light:

environmental room

,

environmental testing equipment



Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃



Quick detail :



Inner Size (W*H*D)

 50*60*50CM

External Size (W×H×D)

 100*148*106CM

Humidity Control Range

 Humi.range: RH20%-98% (can be customized)

Temperature control range

A: -40℃~150℃,B: -60℃~150℃ ,C: -70℃~150℃

Temp&Humi Fluctuation

 ±0.5℃;±2.5%RH

Controller Resolution

 ±0.3℃;±2.5%RH

Temp&Hum Departure

 ±0.5℃-±2℃;±3%RH(>75%RH); ±5%RH(≤75%RH)

Power

380/ 220V AC±10%  50/60Hz


Application:

     ouch Screen Temperature Humidity Environmental Test Chamber can simulate different environment condition. It is appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.

Related Standards:

IEC600628 2-1/2/3/30,  GB/T2423/5170/10586,  JIS C60068,  ASTM D4714, CNS3625/12565/12566

Characteristics:

1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Control temperature humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature and humidity environment

Specifications:



Model

LY-280

LY-2150

LY-2225

LY-2408

LY-2800

LY-21000

Inner Size W×H×D(cm)

40×50×40

50×60×50

50×75×60

60×85×80

100×100×80

100×100×1000

External Size W×H×D(cm)

93×155×95

100×148×106

117×166×118

122×176×121

158×186×148

158×195×168

Volume(L)

80 L

150L

225L

408L

800L

1000L

Temp&Humi Control Range

 Temp. Range:  A: -40℃~150℃            Humi.range: RH20%-98%

              B: -60℃~150℃

              C: -70℃~150℃

 (Other temperature and humidity range can be customized)

Temp&Humi Fluctuation

±0.5℃;±2.5%RH

Temp&Hum Departure

±0.5℃-±2℃;±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller Resolution

±0.3℃;±2.5%RH

Controller Brand

Korean TEMI880

Material

Inwall

SUS 304# steel plate

Housing

SUS 304# steel plate surface fog processed

Heat Insulator

resistance to high temperature, high chlorine acid b vinegar foam insulation materials

Aie Circulation Way

centrifugal fan-broadband type force  air circulation

 Refrigeration Way

cascade type multiple refrigeration

Refrigerater

fully enclosed piston compressor Taikang France

Refrigerants

R4O4A or American dupont environmental protection cold media(R23+R404)

Condensing Way

Air-cooling

Heater

nickel chrome heating wire heater

Humidifier

semi-closed steam

Water Supply Way

 automatic cycle water supply

Standard Accessaries

*50mm test hole on the left............................................................1PCS
*PL inner lamp................................................................................1PCS
*Adjustable clapboard.....................................................................2PCS
*Humidity cloth...............................................................................1Bag
*Fuses..............................................................................................3PCS
*Power line.......................................................................................1PCS
*Software CD....................................................................................1PCS
*Operation manual.............................................................................1PCS

Safety Devices

*Leakage current
*Overload
*Compressor overload
*Over temperature
*Ultra-wet/dry
*Humidification temperature protection.

Power

380/ 220V AC±10%  50/60Hz





Picture show :

Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃ 0

Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃ 1





Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃ 2





   Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.



   Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.



   Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.



Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.



Stainless Steel Temperature Humidity Chamber with -70℃ to 180℃ 3





During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.



2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.



3)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.



4)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
