Product Details:
|
| Transmittance: | 0 -- 100%±0.01% | Wavelength Range: | 280--400nm±0.5nm |
|---|---|---|---|
| Wavelength Repeatability: | 0.25nm | Data Interval: | 1nm-5nm Adjustable |
| Slit Width:: | ≤5nm | Samples Beam Diameter: | 10mm |
| Sample Size: | ≥Φ45mm | Power Source:: | AC220V, 50 Hz, 100W |
| High Light: | tearing strength tester,fabric testing equipment |
||

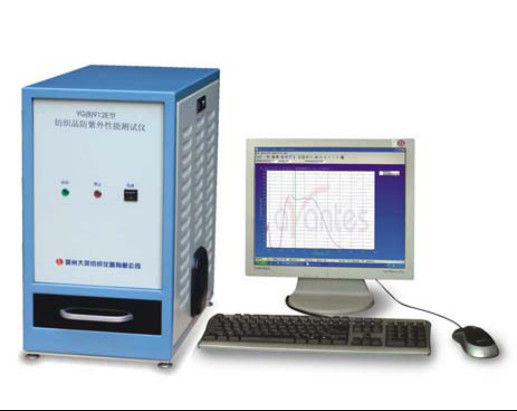

Durable Textile Testing Equipment , Fabrics UV Prevention Performance Tester Transmittance
Uses
It is used for testing the ultraviolet transmittance and uv protection of textiles.The uv protection coefficient UPF of textiles can be directly tested.
Standards
GB/T 18830 AATCC 183 AS/NZS 4399 BS 7914 PREN13758
Testing Parameters
transmittance,0 -- 100%±0.01%
UPF,0 — 100
Wavelength range,280--400nm±0.5nm
Wavelength repeatability,0.25nm
Data interval,1nm-5nm adjustable
Slit width:≤5nm
Samples beam diameter:10mm
Sample size: ≥Φ45mm
HERAEUS Deuterium lamps, built-in spectrophotometer with integrating sphere, automatic wavelength scanning, wide testing range (all UV waveband can be measured) and high testing precision.
Ultraviolet photoelectric sensor, can measure the fluorescent sample.
Simultaneously in line with standard AATCC 183-1998, BS 7914-1998, PREN13758-2001, AS/NZS 4399-1996, GB/T 18830-2002
Full computer-controlled, automatic data processing, a variety of graphics, statements of statistics, analysis, storage and output
External dimension:285×500×500mm
Power source:AC220V, 50 Hz, 100W
Weight:20kg
