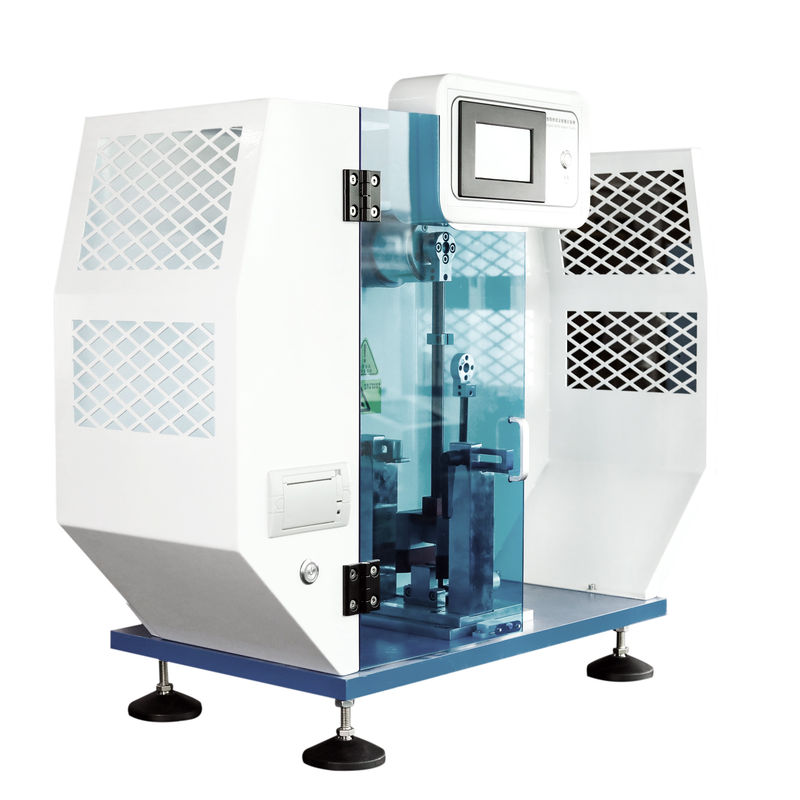

LCD Touch Screen Plastic Testing Equipment , Izod Imapct Plastic Testing Machine

Certification
China Dongguan Liyi Environmental Technology Co., Ltd. certification
China Dongguan Liyi Environmental Technology Co., Ltd. certification
Customer Reviews
We`ve received machines yesterday!It was great to work with you! In attachment the thank-you letter for you and youк boss, that was signed by my CEO.

—— Барабан Григорий

We have had a good look at the glossmeter & we like what we see. The results are respectably close to specification calibration. We love it.

—— Dave Brewer

We have received the machine, thank you for being patient with me during this time, I haven't use it yet, but I am sure that it will be okay.

—— Jose Zikasky

I love your customer service, quickly response and being thoughtful all the time. The machine delivered on time. Thank you.

—— Elizebath Roberts

I'm Online Chat Now

LCD Touch Screen Plastic Testing Equipment , Izod Imapct Plastic Testing Machine

LCD Touch Screen Plastic Testing Equipment , Izod Imapct Plastic Testing Machine
LCD Touch Screen Plastic Testing Equipment , Izod Imapct Plastic Testing Machine
LCD Touch Screen Plastic Testing Equipment , Izod Imapct Plastic Testing Machine LCD Touch Screen Plastic Testing Equipment , Izod Imapct Plastic Testing Machine LCD Touch Screen Plastic Testing Equipment , Izod Imapct Plastic Testing Machine

Large Image :  LCD Touch Screen Plastic Testing Equipment , Izod Imapct Plastic Testing Machine

Product Details:
Place of Origin: CHINA
Brand Name: LIYI
Certification: CE,ISO
Model Number: LYXJJD5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: export polywood packing
Delivery Time: 7 days
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 set per month

LCD Touch Screen Plastic Testing Equipment , Izod Imapct Plastic Testing Machine

Description
Impact Energy: 2.75J、5.5 J Impact Speed: 3.5 M/s
Starting Angle: 150° Corner Radius Of Striking Edge: (2.0±0.5)mm
Specimen Support Span: 60mm,70mm,95mm Included Angle Of Striking Edge: (30±1)º
Corner Radius Of Vice: (1.0±0.1)mm Support Span: 62 Mm
Accuracy: ±0.1% Tester: Izod Impact Plastic Test Machine
High Light:

impact test equipment

,

material testing equipment



LCD Touch Screen Plastic Testing Equipment , Izod Imapct Plastic Testing Machine





Introduction:



This tester is mainly used in hard plastic (including plank, materials, plastic profile), the increase of nylon, glass fiber reinforced plastic, ceramic, and cast stone, electrical insulating materials etc. Nonmetal material impact toughness is determined.



Standard:

ISO179-2000

GB/T1043-2008

JB/T8762-1998

GB/T 18743-2002

ISO180-2000

GB/T1843-2008

JB/T8761-1998

ASTM D256-2010



Features:



1) It is a kind of intelligent digital testing machine using the microcomputer technology. It is advanced

 that it can automatically correct the energy loss caused by friction and windage to modify the energy

chart, getting rid of the resistance effect. (The detection of the pendulum energy after specimen

fracture and the correction of energy loss are finished during the impact at once)



2) The test results of plastic digital charpy impact testing machine are electrically displayed to make the

reading more intuitive, improving the precision and accuracy of the impact machine.



3) The rotary encoder circular grating angle measurement technology is used by the instrument to

display the thrusting energy, impact strength, pre Yang angle, up angle, the average angle and the

energy loss corrected automatically, with the advantages of high accuracy ,good stability and a large

measure range.



4) The main technical parameters are strictly in conformity with the standards of ISO 179,GB/T 1043

 and JB/T 8762.



Specifications:



Type

LY-XJJD5

Impact energy

2.75J,5.5 J

Impact speed

3.5 m/s

Starting angle

150°

Corner radius of striking edge

(2.0±0.5)mm

 Specimen support span

 60mm,70mm,95mm

Included angle of striking edge

(30±1)º

Corner radius of vice

(1.0±0.1)mm

Support span

62 mm

Accuracy

±0.1%
