Product Details:
|
| Model: | LY-ZW | Inside Dimensions (CM): | 45×117×50 |
|---|---|---|---|
| Outer Dimensions (CM): | 70×135×145 | Rate Of Work: | 4.0(KW) |
| Temperature Range: | RT＋10℃～70℃ | Humidity Range: | ≥95％R.H |
| Lamp Amount: | 8 Pcs | Water Supplying System: | Humidification Water Supplying Automatic Control |
| High Light: | accelerated uv testing,accelerated weathering machine |
||

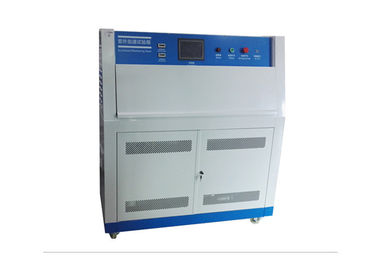

LY-ZW Touch Screen UV Aging Accelerated Weathering Tester With Capacity 4 KW 8 Lamp With 48 Samples
Designing Standard:
IEC61215, ASTM D4329,D499,D4587,D5208,G154,G53；ISO 4892-3,ISO 11507；EN 534；prEN 1062-4,BS 2782；JIS D0205；SAE J2020,etc.
Brief Introduction:
The tester can provide reliable aging test data to make the exact prediction of products’ weathering fastness(aging resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
Characteristics:
1.The ultraviolet aging tester is designed according to uses’ operation , it’s easy to operate, safe and reliable.
2.The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3.The door rotating up does not interfere with the operation and the tester takes a very small space only.
4.It’s unique condensating system can be contented by tap water.
5.The heater is under the container rather than in the water, which is long life, easy to maintain.
6.The water level controller is outside the box, easy to monitor.
7.The machine has truckles, convenient to move.
8.Computer programming is convenient, automatic alarming when incorrect operated or faulted.
9.It has irradiance calibrator to extend the life of the lamp tube(more than 1600h).
10.It has Chinese and English instruction book, convenient to consult.
11.Divided into three types: common, light irradiance controlling, spraying
Photo Show:
Technical Parameter:
1.Accord with the standard of ISO,ASTM, DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT.
2.The condensing device simulated the outdoor moisture influence, can achieve 100% humidity
3.A electronic irradiance control system
4.Use the blackboard temperature sensor measuring temperature accurate, which can repeated the test results.
5.Humidity, condensation, water spray circulating consecutive testing.
6.Intensity of illumination has CR-10 calibrating pegging and automatic calibration procedures (American Q-the Lab patent technology) .
7.Sample quantity: 75mm×300mm 24pieces, 75mm×150mm 48 pieces.
Specifications:
| Model | LY-ZW | |
| Inside Dimensions (CM) | 45×117×50 | |
| Outer Dimensions (CM) | 70×135×145 | |
| Rate of Work | 4.0(KW) | |
|
Performance Index
|
Temperature Range | RT＋10℃～70℃ |
| Humidity Range | ≥95％R.H | |
| Distance Between Lamps | 35mm | |
| Distance Between Samples and Lamps | 50mm | |
| Specimen Number | L150mm×W75mm, 48pcs in total | |
| Ultraviolet Wavelength | 290nm～400nm UV-A340,UV-B313,UV-C351(state clearly in your order )Philips brand or Q-lab lamps | |
| Rate of the Lamp | 40W/Piece, 1200mm/Piece | |
| Lamp amount | 8pcs | |
|
Controlling System |
Controller | south Korean imported touch screen programmable controller |
| Illumination Heating System | all independent system, nickel chrome alloy electrical heating type heater | |
| Condensation Humidifying System | stainless steel shallow evaporative humidifier | |
| Blackboard Temperature | double metal blackboard mometer | |
| Water Supplying System | Humidification water supplying automatic control | |
| Exposure Way | moisture condensation way exposure, light radiation exposure | |
| Safety Device | leakage, short circuit, super temperature, water shortage and over current protection | |
Safety protection
1. Ground fault protection
2. Power overload, short circuit breaker
3. Control circuit overload, short circuit fuse
4. Water lacking protection
5. Over-temperature protection
Usage requirements:
1. Environmental temperature: 5℃~+32℃
2. Environmental humidity: ≤85% 3. Power requirement: AC220(±10%)V/50HZ
4. Capacity: 5KW
5. Fine grounding
Warranty & service assurance:
1. Warranty Coverage
The warranty period for the machine is one year under normal use since the delivery date.
2. After-sales service
①The free lifetime technical support will be provided.
②Any problems or malfunction of the machine should be emailed to liyitech@163.com in time for the right solutions by our maintenance engineers or technicians.
3. The following situations will not covered by the warranty:
①The failure or damage caused due to abnormal operation and man-made or natural disasters. Contact: Ms. Sharrie Chen. Email: sharrie@liyi-tech.com Tel: +86-769-26997920
②The failure or damage caused due to improperly operation.
③The failure or damage caused due to improper power supply.
④The failure or damage caused due to disassemble or modification of any part (such as machine part, line, etc) without our consent.
⑤Consumable materials like UV lamps are not included in the warranty.
