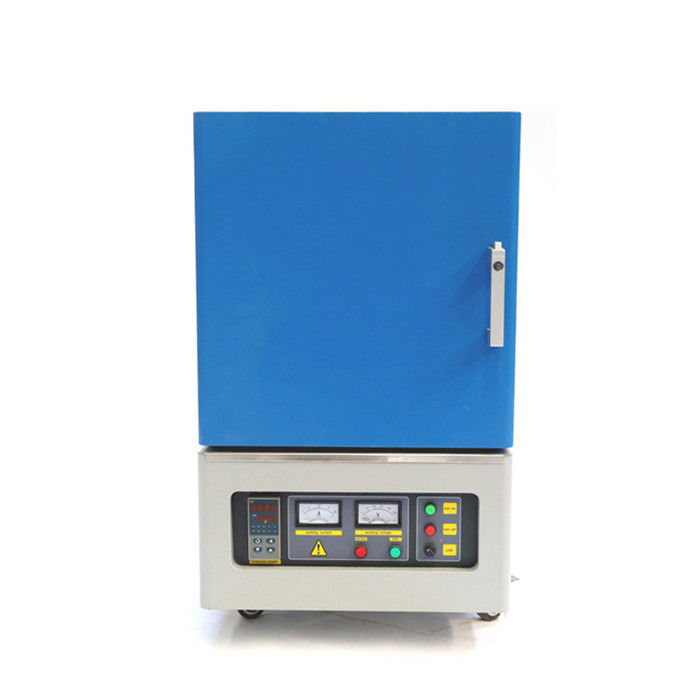

LY- TP High Temperature Muffle Furnace 0--30℃/min Heating Rate 220V

LY- TP High Temperature Muffle Furnace 0--30℃/min Heating Rate 220V
LY- TP High Temperature Muffle Furnace 0--30℃/min Heating Rate 220V LY- TP High Temperature Muffle Furnace 0--30℃/min Heating Rate 220V LY- TP High Temperature Muffle Furnace 0--30℃/min Heating Rate 220V LY- TP High Temperature Muffle Furnace 0--30℃/min Heating Rate 220V

Large Image :  LY- TP High Temperature Muffle Furnace 0--30℃/min Heating Rate 220V

Product Details:
Place of Origin: Dongguan
Brand Name: LIYI
Certification: CE ISO
Model Number: TP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Pending negotiation
Packaging Details: plywood
Delivery Time: 5-20 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 100 units per month

LY- TP High Temperature Muffle Furnace 0--30℃/min Heating Rate 220V

Description
Power(w): Electronic, 220V 50/60HZ Temperature Range: RT~1800°C
Accuracy: ±1°C Heating Rate: 0--30℃/min
Volumn: Customize Theory: Temperature Controller
High Light:

industrial drying ovens

,

hot air circulating oven

LY- TP High Temperature Muffle Furnace 0--30℃/min Heating Rate 220V



Application



Laboratory high temperature chamber furnace for special baking process can be used for aging test of electronic components and plastic chemical products together with iron preheat, quenching, burn, stewing, annealing.



Characteristics



1. The furnace mantle adopts unique design of double-deck structure with High quality cold-rolled steelplate, The paint is baked at high temperature, it can be used for a long time.



2. Equipped with air-cooling system, the furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, etc.



3. The vacuum system adopts special design, the vacuum degree is -0.1MPa, and the atmosphere furnace pressure is 0.04MPa, automatic over-pressure and manual exhaust function, make it safe and reliable to use.



4.The inner box adopts integral seal, valve control are equipped with intake valve, exhaust valve, vacuum valve, it can be filled with nitrogen, argon and other inert gas.



5.The imported ceramic alumina poly-crystalline mullite fiber material in furnace is constructed by special technology, which is more energy efficient than traditional electric furnace.



6.The control system adopts the technology of artificial intelligence of microcomputer, which has the functions of PID regulation, fuzzy control, self-tuning, 50 segment programming, and it can program all kinds of programs of temperature rising, constant temperature, cooling temperature, and high precision of temperature control.



7. Modularized thyristor crystal control, phase shift trigger; The heating element is made by imported high quality silicon molybdenum rod.



8. The protection device adopts independent over temperature protection, overcurrent, leakage, short circuit protection.



Specification



Model LY-16-17TP LY-16-18TP LY-16-19TP
Furnace size(W*H*D)mm 150*150*80 200*150*150 300*200*200
Outer size(W*H*D)mm 735*750*1200 700*670*930 750*660*1020
Weight(Kg) 155 190 300
power rating 3KW 5KW 9KW
Power 220V 50/60HZ
Temperature control precision ±1℃
vacuum degree -0.1MPa
end-use temperature maximum temperature 1800℃
heating rate 0--30℃/min(recommended less than 20℃/min)
Thermocouple Type B
heating element Silicon molybdenum rod
Display mode Color LED display
gasket ring Fluorine ring
vacuum pump Oil-immersed single rotary vane vacuum pump
Measuring mode mechanical pressure gauge
Furnace material High alumina polycrystalline ceramic fiber
Furnace structure double-layer forced air-cooling structure
