Product Details:
|
| Power: | Electronic | Usage: | Universal Testing Machine |
|---|---|---|---|
| Test Force Accuracy: | ±1% | Displacement Resolution: | 0.01mm |
| Deformation Test Accuracy: | ±0.5% | Bending Test Branch Space: | 450 Mm |
| Piston Stroke: | 250mm | Clamp Method: | Built-in Hydraulic Clamp |
| High Light: | digital tensile testing machine,electrical testing equipment |
||

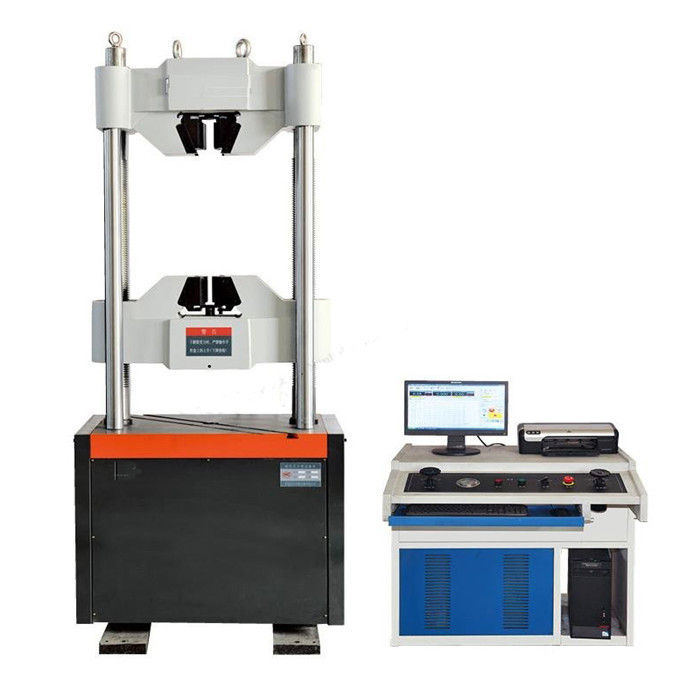

LYH-300D UTM Machine Working And Construction ±1% Test Force Accuracy
Structure Introduction:
1. 1000KN Compression Tensile Testing Machine is mainly used to execute the tension, compression, bending, shearing etc. test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances.
2. The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.
3. 1000KN Compression Tensile Testing Machine adopts Load cell measure load, use computer control & display load,
Main Parameters:
| Tester Model | LYH-300D | LYH-600D | LYH-1000D | LYH-2000D | |
| Max load(kN) | 300 | 600 | 1000 | 2000 | |
| Test range | 6KN-300kN | 12KN-600kN | 20KN-1000kN | 40KN-2000kN | |
| Test force accuracy | ±1% | ||||
| Displacement resolution | 0.01mm | ||||
| Deformation test accuracy | ±0.5% | ||||
| Constant force/ displacement controlling accuracy |
SV<10%FS, less than ±1.0% of SV SV≥10%FS, less than ±0.5% of SV |
||||
| Deformation rate control accuracy |
Rate <0.05%FS, less than ±2.0% of SV Rate ≥0.05%FS, less than ±0.5% of SV |
||||
| Max drawing space | 800mm | 800mm | 850mm | 800mm | |
| Max compressing space | 700mm | 700mm | 700mm | 700mm | |
| Flat sample clamp thickness | 0-15mm | 0-15mm | 0-40mm | 0-60mm | |
| Round sample clamp diameter | φ6-φ26mm | φ13-φ40mm | φ13-φ60mm | φ15-φ70mm | |
| Bending test branch space | 450 mm | ||||
| Branch width | 140mm | ||||
| Branch diameter | 30mm | ||||
| Piston Stroke | 250mm | ||||
| Clamp method | Built-in Hydraulic clamp | ||||
| Outer demension | Machine | 990×600×2435mm | 990×600×2453mm | 1100×770×2490mm |
1160×1100× 2600mm |
| Oil source | 1100×700×950mm | ||||
| Complete weight | 2800kg | 3000kg | 4700kg | 6500kg | |
Product Effects
Company Information
LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
