Product Details:
|
| Power: | Electronic | Usage: | Plastic Testing Machine |
|---|---|---|---|
| Temperature Range: | 500-1000C ±2C Continus Adjustable | Glow Wire: | Diameter 4mm±0.04mmNi/Cr(80/20), Standard |
| Ironing Into Depth: | 7mm ± 0.5 Mm | Test Speed: | 18±3mm/s |

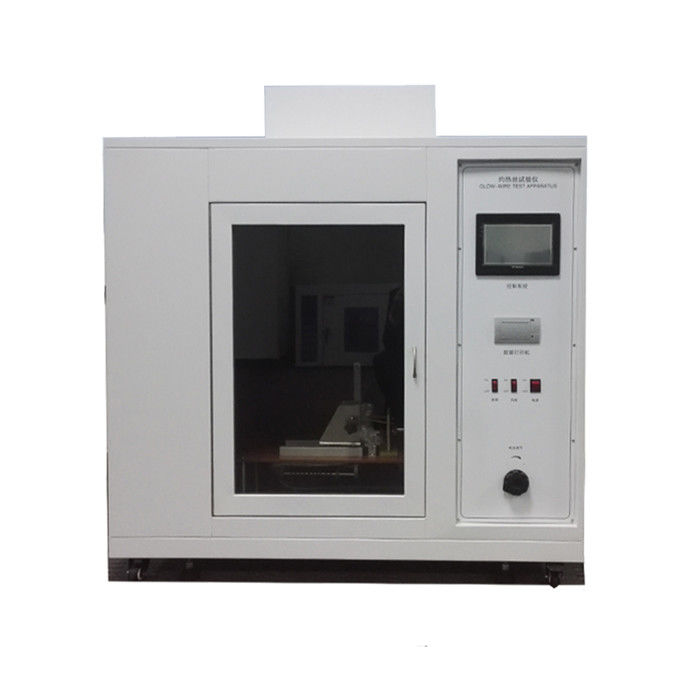

IEC60695 Electronic Glow Wire Test Equipment/ Plastic Testing Machine
Basic introduction:
1. glow wire test apparatus Accord with IEC60695-2-10, UL 746A, GB/T5169.10, GB4706.1
2. glow wire test apparatus Using electricity heating regulation material (Ni80 / Cr20) of resistanse wire (Φ 4 mm Ni-Cr alloy wire) to 0°C~ 1000°C in 1 min,then with 1.0 N vertically burn it 30s,measure the fire risk by product light-off or holde burning time ,also test light-off degree, light-off temperature (GWIT), flammability and combustible index (GWFI).
3. glow wire test apparatus Suitable for lighting equipment, low voltage electric appliance,electrician instruments and material flammability testing, such as electrical and electronic products.
Specifications:
|
Model |
LY-ZRS-1 |
LY-ZRS-2 |
|
Controller |
Touch screen controller |
Button controller |
|
Glow wire |
diameter 4mm±0.04mmNi/Cr(80/20), standard |
|
|
Temperature range |
500-1000°C ±2°C continus adjustable |
|
|
Thermocouple |
diameter 0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature -40~ 1100°C |
|
|
Searing Time |
30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, presettable) |
|
|
Light-off Time |
0-999.9 s ± 0.1 s, automatic recording, manual timeout |
|
|
Fireouttime |
0-999.9 s ± 0.1 s, automatic recording, manual timeout |
|
|
Ironing into depth |
7mm ± 0.5 mm |
|
|
Sample pressure |
1N ± 0.2 N |
|
|
Test speed |
18±3mm/s |
|
|
Test background |
black background |
|
|
Test process |
automatic control, independent convulsions |
|
|
Chamber |
≥0.5m |
|
|
Size |
W1100mm×D700mm×H1300mm, exhaust hole Ø100mm can customize |
|
|
Control |
Using single chip microcomputer + touch screen control |
|
|
Consult standard |
GB/T5169.10-2006 , IEC60695-2-10:2000,UL746A |
|
|
Power Supply |
800VA ,220V, 48-60Hz |
|
