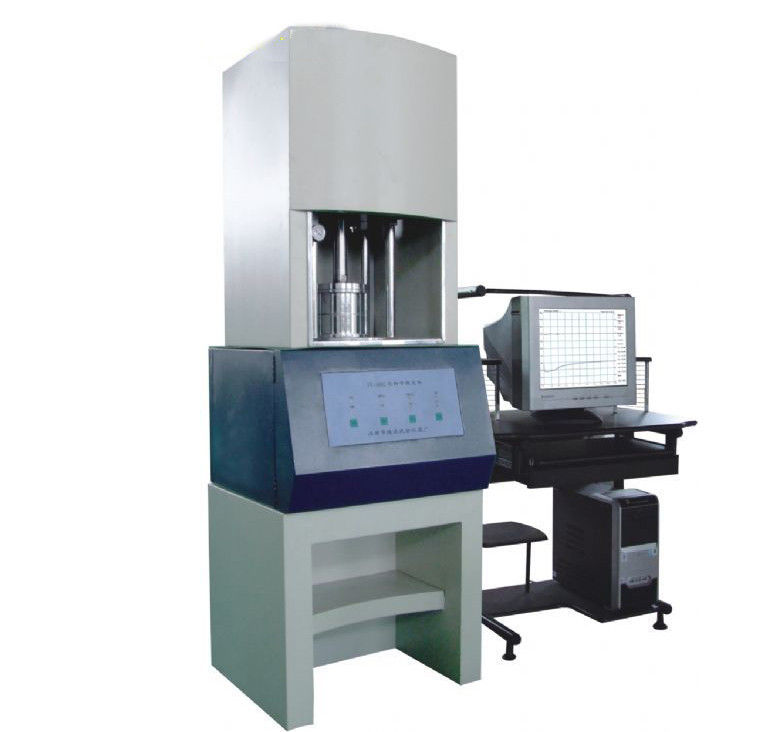

Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine

Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine
Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine

Large Image :  Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine

Product Details:
Place of Origin: Dongguan
Brand Name: LIYI
Certification: CE ISO
Model Number: LY-2118
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Pending negotiation
Packaging Details: plywood case
Delivery Time: 5-20days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 100 units per month

Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine

Description
Power: Electronic Control Range: At Room Temperature To 200 ℃
Minimum Showed: 0.01 ℃ Temperature Heating Rate: 15 ℃ / Min
The Torque Range: 0-25 Nm The Minimum Torque Reading: 0.001 NM: 0.001 NM
High Light:

hardness testing machine

,

viscosity tester equipment

Industrial Rubber Testing Rotorless Rheometer / Rubber Vulcanizing Machine


Uses:

Rubber Mooney viscosity test machine is used for testing reclaimed rubber or gross rubber viscosity, scorch and vulcanization index, etc. Computer control, data display, automatic calibration, it is a precision labrotary test instrument of rubber industries.
Under the strong support of advanced PC machine WindowsXP, window 7 or other windows software, coupled with the excellent user software and advanced hardware didn't prepare make the whole measurement become very convenient, quick, accurate and pleasure.



Corresponding standard:

GB/T1232, GB/T 1233,

ISO667, ISO 289 ,

ASTM D 1646,

JIS K 6300 etc.



Specifications:

Items Specification
Range of temperature control From room temperature to 200°C
Temperature fluctuation in die ≤±0.1°C
Temperature display resolution 0.1°C
Rate of temperature increase Room temperature ~ 100°C 6min
Measurement range of torque 0-200 MV
Mooney test accuracy ±0.2MV
Torque resolution 0.1MV
Frequency of rotor 2±0.02r/min
Temperature PID Control +/- 0.1°C
Upper & Lower Separate plate temperature control
Power supply 220 V ,1 Phase, 50 Hz 680W
Dimensions 560×580×1160 mm
Weight About 300kg



Functions:

1. It used monolithic rotor control, which include: host, temperature measurement, temperature control, data acquisition and processing, sensors and electrical chains and other components. These measurements, temperature control circuit consists of a temperature control device, platinum resistance, heater composition, capable of automatic tracking power and ambient temperature changes, automatically correct PID parameters to achieve fast and accurate temperature control purposes. Data acquisition system and mechanical linkage to complete the rubber vulcanization process of force torch signal automatic detection, automatic real-time display of temperature and settings. After curing, automatic processing, automatic calculation, print vulcanization curve and process parameters. Show curing time, curing power Ju, also has a variety of audible alert.

2. It controlled by computer, the computer setting the parameters of the direct control of test parameters rheometer. Display real-vulcanization curve and temperature curve, store test results, different adjustable comparison of test results and in a different color.



Characteristics:

1. Easy to use.

2. Temperature can be increased up to 185 within 7.5min, and recovery time when beginning, and recovery time when beginning test will be less 2min. And temperature fluctuation will be within 0.1.

3. All instruments adopted the way of PID to control temperature. The smallest size and weight in all of the same type instrument in the market;

4. The die was designed to international standard ISO.

5. With lower noise when working, ≤55dB.

6. It is following ISO 289 ,ASTM D 1646, JIS K 6300 .

7. Can variable Temperature unit “C, “ F Degree.

8.Use window XP program connect to machine & and can setting Mooney or scorch time and show Dynamically Mooney value or scorch time on the graph.



Product Effects

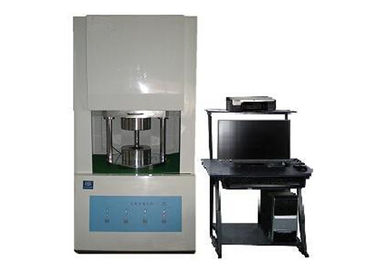

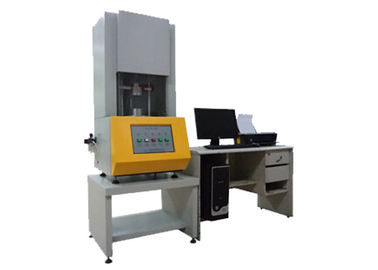

Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 0



Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 1



Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 2



Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 3



Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 4









Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 5



Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 6



Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 7

Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 8

Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 9

Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 10

Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 11

Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 12

Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 13



Company Information



LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 14



Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 15



Industrial Rubber Testing Equipment Rotorless Rheometer / Rubber Vulcanizing Machine 16



Our Services



If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.



1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.



2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.



3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
