Product Details:
|
| Model: | CS-1/2/3 | Cylinder Number: | 1/2 |
|---|---|---|---|
| Cylinder Radius: | Dia 286mm | Cylinder: | 39mm |
| Tablet Fall Height: | 156mm | Rotation Speed: | (20-90)rpm, 25rpm |
| Rotation Speed Accuracy: | ±1rpm | Rotation Count: | (10~900)r, 100r |
| Rotation Count Accuracy: | ±1R | Dimension: | 370*300*340mm |
| Weight: | 15kg | Power: | 220V/ 50Hz/ 60W Or 110V/ 60Hz/ 60W |
| High Light: | constant temperature and humidity chamber,stability test chamber |
||
LIYI Digital Hospital Non Contact Infrared Forehead Thermometer
Specification
|
| Model | Features : |
| CS-1 | Double turntable , Speed adjusted , cylinder number adjusted 20-90rpm ,10-900r |
| CS-2 | Double turntable , Speed fixed , cylinder number fixed ,25rpm , 100r |
| CS-3 | Double turntable , Speed fixed , cylinder number adjusted 25rpm , 10-900r |

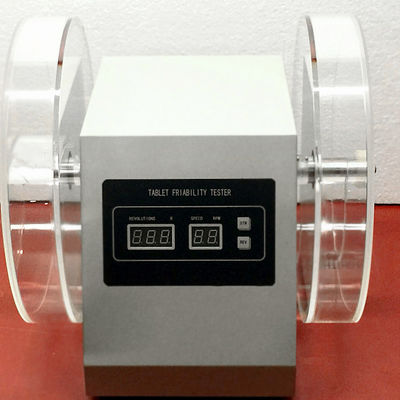

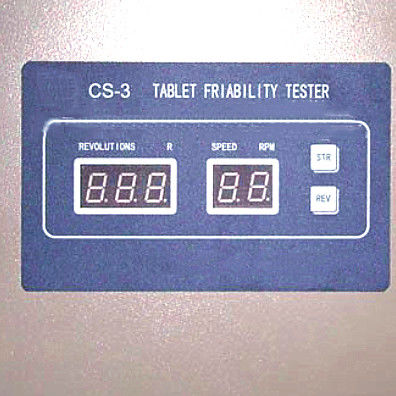

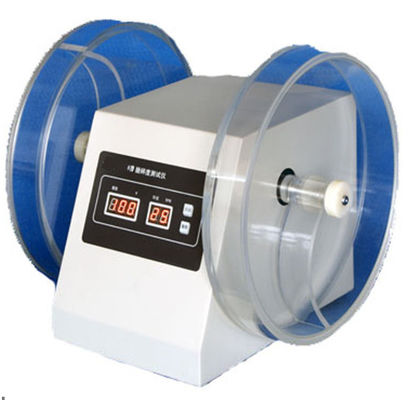

CS-1/2/3 (three models with same picture)
Applicable standards:
Corporate standard(Dissolution tester )Q/12XQ0189-2010
Features:
1.Automation: auto-test, auto-diagnose, auto-alarm.
2.Intelligently control the rotating speed of cylinder and revolutions.
3.One drum runs synchronously. Auto stop at timing point. (only for TFT-4)
4.Single path and double cylinder, synchronous operation and automatic stop.
5.The revolution of the drum can be preset at any time, either preset or real data is displayed on the LCD.
6.Microprocessor unit is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.
Picture reference:
