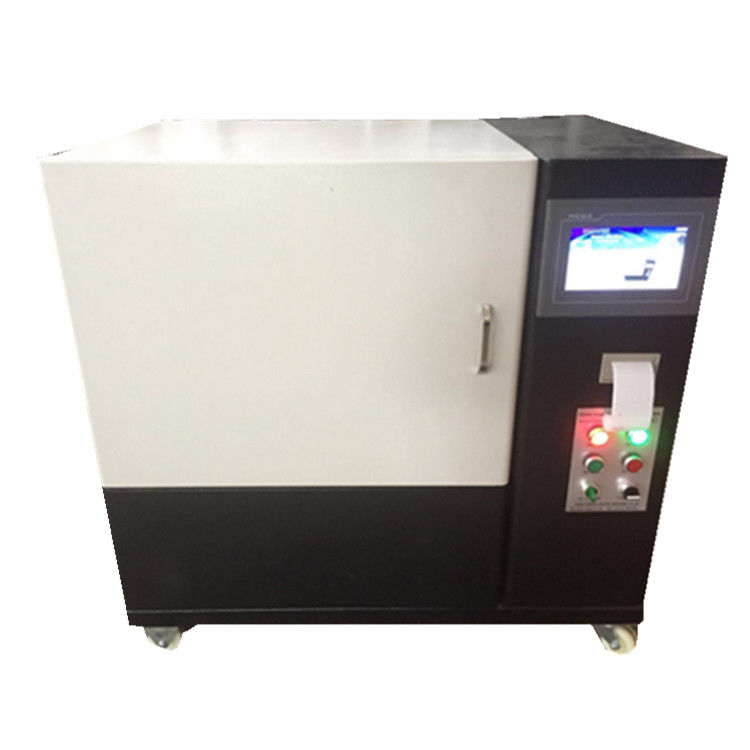

Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials

Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials
Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials

Large Image :  Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials

Product Details:
Place of Origin: Dongguan
Brand Name: LIYI
Certification: CE,ISO
Model Number: LY-BT-300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 5-20days
Payment Terms: L/C, D/A,T/T, Western Union
Supply Ability: 100 units per month

Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials

Description
Model Number: LY-BT-300 Thermal Conductivity Range: 0.005 ~ 3 W/m.K
Cooling System: Room Temperature~99.99℃ Cold Plate Temperature: 5~50℃
Temperature Accuracy/resolution: 0.1℃/0.01℃ Repeatability: 1%
Accuracy: 3% Thermal Resistance Range: 0.1 ~ 8.0 M2K/W
High Light:

infrared digital thermometer

,

infrared digital laser thermometer

Construction Insulation Materials Intelligent Guarded Hot Plate Thermal Conductivity Tester



Introduction:

It is mainly used to test the thermal conductivity of insulation materials. Testing materials include fiber board, loosing filler glass fiber, ceramic fiber, foam plastic (XPS/EPS/PUR, etc.), inter-layer composite plate, vacuum plate, rubber products, cement(concrete) products. Measuring with this machine, it tends to be stable rapidly and can generate rapid response to sample characteristics. This depends on the precise control of the plate temperature and the configuration of the instrument's dual heat flow sensor. For some materials, it takes only a few minutes to get the correct thermal resistance. Depending on the measurement requirements, the user can choose either to terminate the measurement at this time or to further extend the measurement time. For QC and process control, the sample test time is shorter than 5 minutes. Measurements are strictly in accordance with ASTMC518 or ISO8301 and GB/T10295 standards.



Standards :

ASTMC518 , ISO8301 , GB/T10295



Features :

1. It has fuzzy guarded plate that is hot plate temperature tracking and precision control technology.

2. Self-calibration function of the thermal conductivity and heating power

3. Compensation for test piece’s thickness and the average temperature

4. WINDOWS automatic thermal analysis measuring software system, data analysis and reporting output function.



Specifications:

thermal conductivity range 0.005 ~ 3 W/m.K
Cooling system External water bath/compressed air
Hot plate temperature Room temperature~99.99℃
Cold plate temperature 5~50℃
Temperature accuracy/resolution 0.1℃/0.01
Specimen quantity &sizes(Max) 1 piece, 300×300×50 mm
Measure thickness automatically High-precision displacement sensor is used and connected with computer to measure thickness automatically; resolution 0.01mm.
Thermal resistance range 0.1 ~ 8.0 m2K/W
Repeatability 1%
Accuracy 3%
Environmental condition room temperature: 18~25℃, humidity: 20~80%RH
Data result analysis Automatic thermal analysis software, Windows 8/7/XP, English
Supply voltage AC 220V±5%, power: 3.0kw

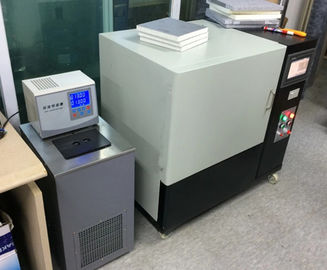

Product list: Test host, Accurate thermostatic bath, Testing software, Communication line



Photo reference:

Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials 0Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials 1Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials 2



Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials 3



Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials 4



Intelligent Guarded Hot Plate Thermal Conductivity Tester For Construction Insulation Materials 5



Our Services

During the whole business process, we offer Consultative Selling service.



1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:



We offer below business term:

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, HKD, CNY
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port: Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired



4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support
