Product Details:
|
| Place Of Origin: | Guangdong, China | Warranty: | 12 Months |
|---|---|---|---|
| Material: | #SUS 304 Stainless Steel | Controller: | TATO |
| UV Lamp: | UVA/UVB/UVC | Dimensions: | 70*135*145cm |
| Certificate: | CE ISO | Rate Of The Lamp: | 40W |
| High Light: | accelerated uv testing,accelerated weathering machine |
||

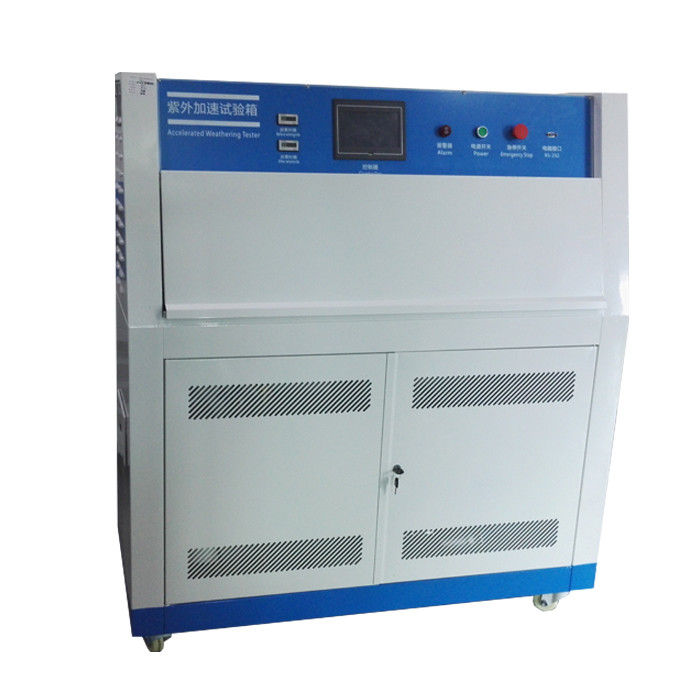

Stainless steel Environmental Testing Machines UV Aging Chamber
This tester can provide reliable aging test data to make the exact prediction of products’ weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula. It is used in many industries, such as: paint, inks, resin, plastics, printing and packaging, adhesives, auto and motorcycle industry, cosmetics, metal, electronic, electroplating, medicine,etc.
Applicable Industries:
Uv Weathering Test Machine is the world's most widely used ,can be used in more labs throughout the world than any other accelerated weathering tester. It's used widely in the industry, such as printing ink, paint, pastics, print, packaging,motor van, metal, electron, medical, and so on.
Uv Weathering Test Machine ,simulates damaging effects of long term outdoor exposure of materials and coatings by exposing test samples to varying conditions of the most aggressive components of weathering - ultraviolet radiation, moisture and heat. A UV accelerated weathering chamber uses fluorecent lamps to provide a radiation spectrum centered in the ultraviolet wavelengths. Moisture is provided by forced condensation, and temperature is controlled by heaters.
Characteristics:
1.The ultraviolet aging tester is designed according to uses’ operation , it’s easy to operate, safe and reliable.
2.Computer programming is convenient, automaticly alarming when incorrect operated or faulted.
3.It has irradiance calibrator to extend the life of the lamp tube(more than 1600h).
4.It has Chinese and English instruction book, convenient to consult.
5.Divided into three types: common, light irradiance controlling, spraying.
Specications:
| Model | LY-ZW | |
| Inside Dimensions (CM) | 45×117×50 | |
| Outer Dimensions (CM) | 70×135×145 | |
| Rate of Work | 4.0(KW) | |
|
Performance Index
|
Temperature Range | RT+10℃~70℃ |
| Himidity Range | ≥95%R.H | |
| Distance Between Lamps | 35mm | |
| Distance Between Samples and Lamps | 50mm | |
| Specimen Number | L300mm×W75mm, about 20pics | |
| Ultraviolet Wavelength | 290nm~400nm UV-340,UV-313,UV-351(state clearly in your order ) | |
| Rate of the Lamp | 40W | |
|
Controlling System |
Controller | touch screen programmable controller |
| Illumination Heating System | all independent system, nickel chrome alloy electrical heating type heater | |
| Condensation Humidifying System | stainless steel shallow evaporative humidifier | |
| Blackboard Temperature | double metal blackboard mometer | |
| Water Supplying System | Humidification water supplying automatic control | |
| Exposure Way | moisture condensation way exposure, light radiation exposure | |
| Safety Device |
leakage, short circuit, super temperature, water shortage and over current protection |
|
