Product Details:
|
| Place Of Origin: | China | Power: | Electronic, 220V/50HZ |
|---|---|---|---|
| Senor: | Imported High Accuracy Sensor | Accuracy Level: | 0.5 |
| Certificate: | CE ISO | Operation System: | TM2012 |
| High Light: | tensile strength testing machine,tensile testing equipment |
||

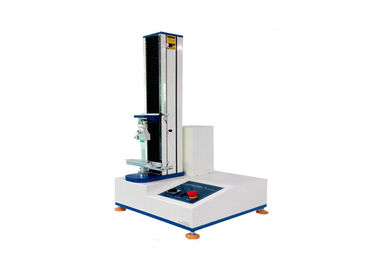

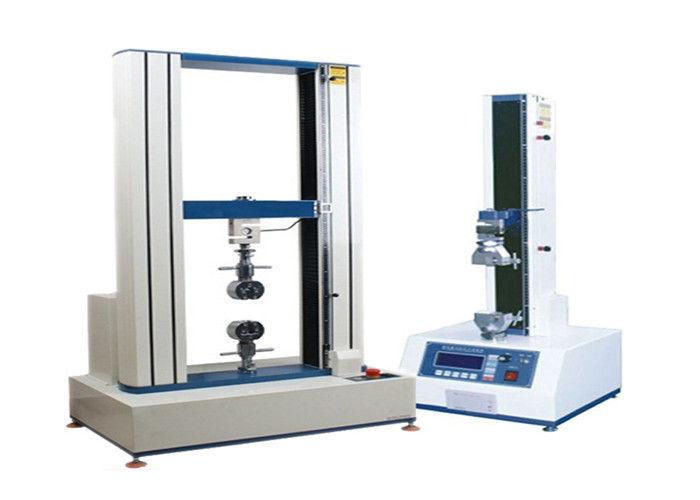

LY-1066A Twin Columns Benchtop Floor 2000KN Computer Controlled Universal Tensile Testing Machine With Steel
Tensile test machines are universal testing machines specially configured to evaluate tensile strength of specimens. Our tensile testers will
measure characteristics such as ultimate tensile strength, yield strength, elongation and modulus. Each tensile test machine is configured to your
testing needs by our application engineers with the correct controller, grips, and accessories. Due to our modular machine design, your tensile
tester can also be equipped to perform other applications such as compression, cyclic, shear, flexure, bend, peel, and tear just by adding fixtures.
Application:
The equipment is applicable to the manufacture of metal, adhesives, pipes, profiles, aerospace, petrochemical, waterproofing membranes, wire
and cable, textile, fiber, rubber, ceramics, food, pharmaceutical packaging, geotextile, film, wood, paper, etc. The product quality supervision
departments at all levels are also applicable to teaching demonstrations in colleges and universities.Tensile testing machine 50KN price computer
controlled universal tensile testing machine.
Standards:
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7,ect.
Characteristics:
1. The structure of tensile strength testing machine is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Paper tensile strength testing machine use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. Paper tensile strength testing machine use the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
| Model | LY-1066A | LY-1066B |
| Capacity | 1,2,5,10,20,50,100,200,500,1000,2000 optional(or customize) | |
| Accuracy level | 0.5 | |
| Effective pull space | 1200mm(contain grips) | |
| Effective test width | 400mm | 320mm |
| Effective test force range | 0.02/100~100% | |
| Speed accuracy | Less than ±0.5% | |
| Displacement accuracy | Less than ±0.5% | |
| Deformation test accuracy | Less than ±0.5% | |
| Sensor | high accuracy sensor | |
| Test force resolution | 1/250,000 | 1/150,000 |
| Test Speed | 0.1~500mm/min | 50~500mm/min |
| Motor system | Panasonic servo motor + Panasonic sevor drive | AC motor + AC drive |
| Software controlling system | Fully computer control, can do constant stress, constant strain, constant displacement,ect. test | |
| Lifting control | Computer control or manual button control | |
| Grips | Customize according to customer requirements | |
| Optional parts | Lenovo computer | |
| Dimension | 80×50×150cm | |
| Weight: | About 145 kg | |
| Operation method | computer control | |
| Operation system | TM2102 | |
| Power | 1Ø,220V/50HZ | |
Safety device:
Stop way: the upper and lower limit safety set, the emergency stop button, strength and elongation elongation program set, the specimens are damaged sensor
