Single Column Tensile Testing Machine With 100% Test Force Range

Single Column Tensile Testing Machine With 100% Test Force Range
Single Column Tensile Testing Machine With 100% Test Force Range Single Column Tensile Testing Machine With 100% Test Force Range Single Column Tensile Testing Machine With 100% Test Force Range Single Column Tensile Testing Machine With 100% Test Force Range Single Column Tensile Testing Machine With 100% Test Force Range

Large Image :  Single Column Tensile Testing Machine With 100% Test Force Range

Product Details:
Place of Origin: Dongguan
Brand Name: LIYI
Certification: ISO
Model Number: 1065
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Pending negotiation
Packaging Details: plywood case
Delivery Time: 5-20days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 100 units per month

Single Column Tensile Testing Machine With 100% Test Force Range

Description
Usage: Universal Testing Machine Power Supply: 220V 50Hz
Standard: ASTM D903 Stroke: 850 Mm
Resolution: 1/250,0001/150,000 Accuracy: ±0.5%
High Light:

Single Column Tensile Testing Machine

,

220V 50Hz Tensile Testing Machine

,

400mm MAX Tensile Testing Machine

Single Column Tensile Testing Machine with 100% Test force range



Application


The tensile tester for abs plastic tensile strength also known as a materials testing machine , is applicable to testing tensile stress , compressive stress , shearing force , peeling force , and elongation of materials , components , and finished product for metal , plastic , rubber , textile , synthetic chemicals , wire and cable , leather , ect.

Test Standard


ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7,ect.

Characteristics

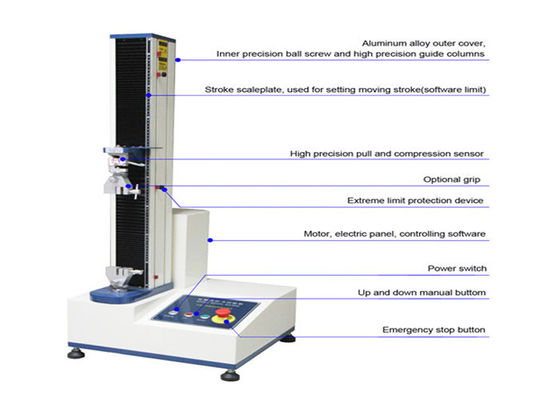

1.The structure of tensile tester for abs plastic tensile strength is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. tensile tester for abs plastic tensile strength use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.
3. tensile tester for abs plastic tensile strength use the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

Specifications:


Capacity

5,10,20,50,100,200,500,1000,2000,5000KG optional

Stroke

800mm(not including fixture)

Test Speed

0.5~1000mm/min(control by keyboard inputing)

Test range

400mm MAX

Dimention

80*50*150CM

Weight

90kg

Accuracy

±0.5%or better

Operation method

computer control

Resolution

1/250,000

Motor

Panasonic servo motor

Operation system

TM2101

Accessories

customized clamps by appointed, force sensors,printer, and operation manual

Power

220V/50HZ


Safety device:

Stop way: the upper and lower limit safety set, the emergency stop button, strength and elongation elongation program set, the specimens are damaged sensor.


Product Effects

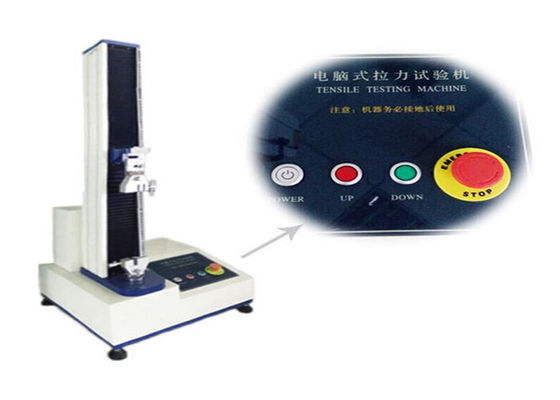

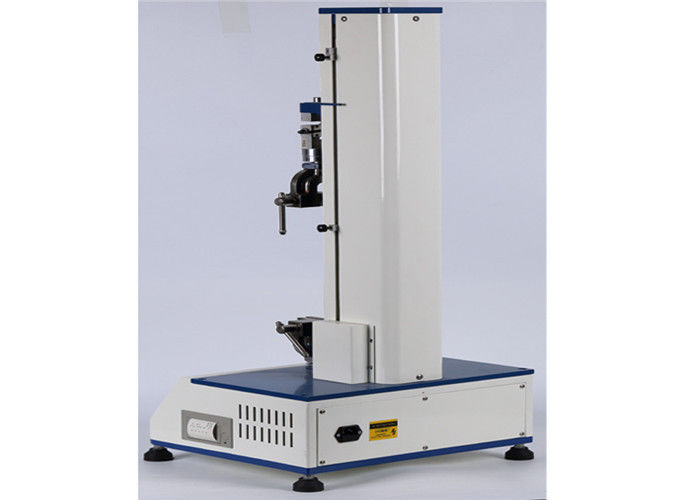

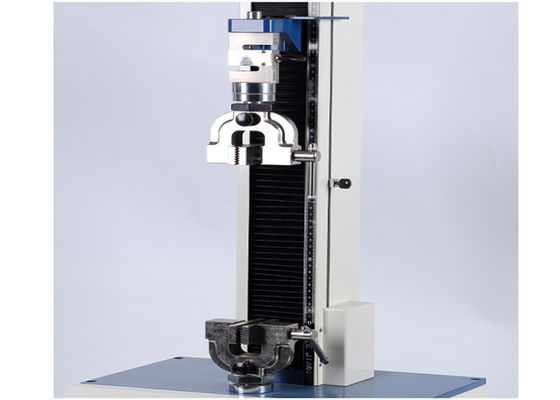

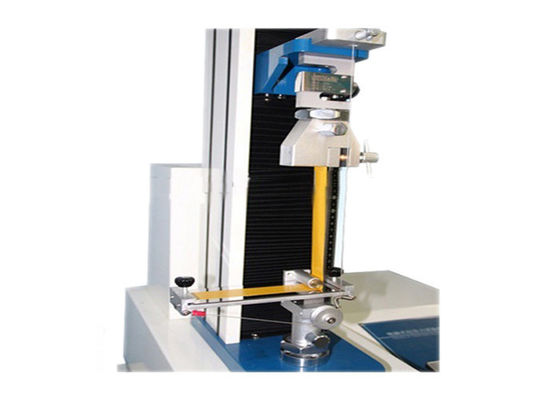

Single Column Tensile Testing Machine With 100% Test Force Range 0

Single Column Tensile Testing Machine With 100% Test Force Range 1



Single Column Tensile Testing Machine With 100% Test Force Range 2



Single Column Tensile Testing Machine With 100% Test Force Range 3



Single Column Tensile Testing Machine With 100% Test Force Range 4


Single Column Tensile Testing Machine With 100% Test Force Range 5


Single Column Tensile Testing Machine With 100% Test Force Range 6


Company Information


LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.


Single Column Tensile Testing Machine With 100% Test Force Range 7

Single Column Tensile Testing Machine With 100% Test Force Range 8

Single Column Tensile Testing Machine With 100% Test Force Range 9

Our Services

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.


1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.


3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.


4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
