Product Details:
|
| Test Force Accuracy: | ±1% | Displacement Resolution: | 0.01mm |
|---|---|---|---|
| Deformation Test Accuracy: | ±0.5% | Bending Test Branch Space: | 450 Mm |
| Piston Stroke: | 250mm | Clamp Method: | Built-in Hydraulic Clamp |
| Built-in Hydraulic Clamp: | 6500kg | Branch Width: | 140 Mm |
| Branch Diameter: | 30mm | ||
| High Light: | Double Column Tensile Testing Machine,300KN Load Tensile Testing Machine,Material Strength Testing Machine |
||

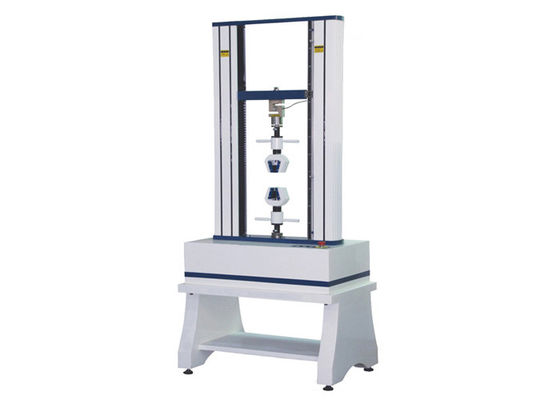

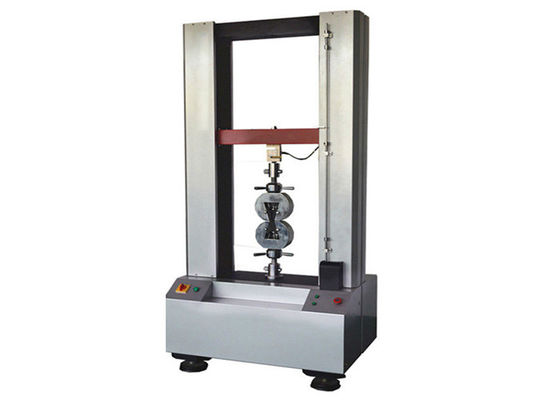

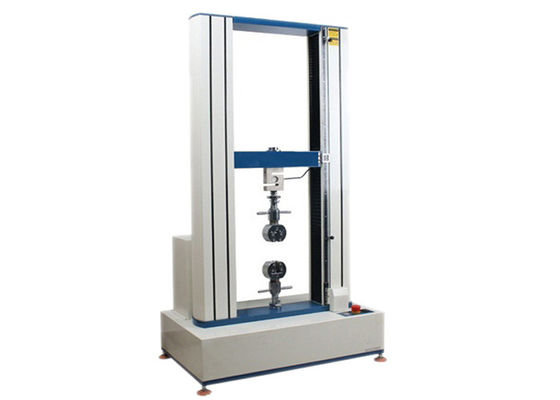

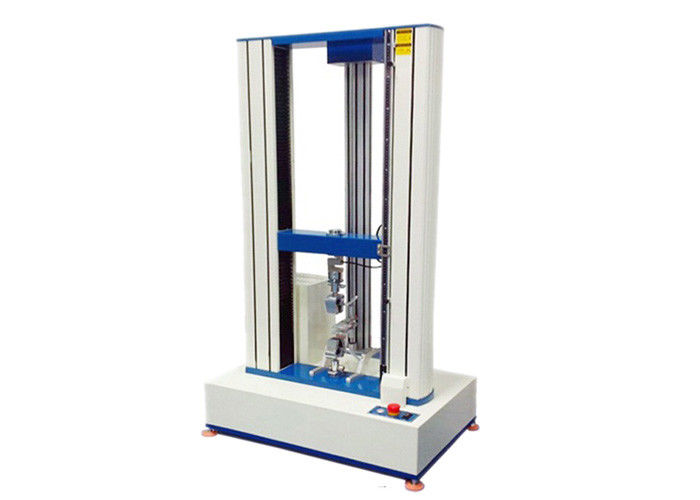

High Performance Super Tensile Testing Machine Built - In Hydraulic Clamp
Material Compression Testing Apparatus
1. Material Compression Testing Apparatus is mainly used to execute the tension, compression, bending, shearing etc. test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances.
2. The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression andbending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.
3. Material Compression Testing Apparatus adopts Load cell measure load, use computer control & display load,
| Tester Model | LYH-300D | LYH-600D | LYH-1000D | LYH-2000D | |
| Max load(kN) | 300 | 600 | 1000 | 2000 | |
| Test range | 6KN-300kN | 12KN-600kN | 20KN-1000kN | 40KN-2000kN | |
| Test force accuracy | ±1% | ||||
| Displacement resolution | 0.01mm | ||||
| Deformation test accuracy | ±0.5% | ||||
| Constant force/ displacement controlling accuracy |
SV<10%FS, less than ±1.0% of SV SV≥10%FS, less than ±0.5% of SV |
||||
| Deformation rate control accuracy |
Rate <0.05%FS, less than ±2.0% of SV Rate ≥0.05%FS, less than ±0.5% of SV |
||||
| Max drawing space | 800mm | 800mm | 850mm | 800mm | |
| Max compressing space | 700mm | 700mm | 700mm | 700mm | |
| Flat sample clamp thickness | 0-15mm | 0-15mm | 0-40mm | 0-60mm | |
| Round sample clamp diameter | φ6-φ26mm | φ13-φ40mm | φ13-φ60mm | φ15-φ70mm | |
| Bending test branch space | 450 mm | ||||
| Branch width | 140mm | ||||
| Branch diameter | 30mm | ||||
| Piston Stroke | 250mm | ||||
| Clamp method | Built-in Hydraulic clamp | ||||
| Outer demension | Machine | 990×600×2435mm | 990×600×2453mm | 1100×770×2490mm |
1160×1100× 2600mm |
| Oil source | 1100×700×950mm | ||||
| Complete weight | 2800kg | 3000kg | 4700kg | 6500kg | |
