Product Details:
|
| Weight: | About 145 Kg | Power: | Electronic, 220V/50HZ |
|---|---|---|---|
| Capacity: | 5,10,20,50,100,200,500,1000,2000,5000KG Optional | SenorDimention: | 50*50*120cmcy Sensor |
| Resolution: | 1/50000 | Display: | Force And Elongation Display |
| Certificate: | CE ISO | Est Space: | 120mmMAX |
| High Light: | Liyi Machine Used For Tensile Test,Computerized Electronic Universal Testing Machine,Liyi Machine Used For Tensile Test |
||

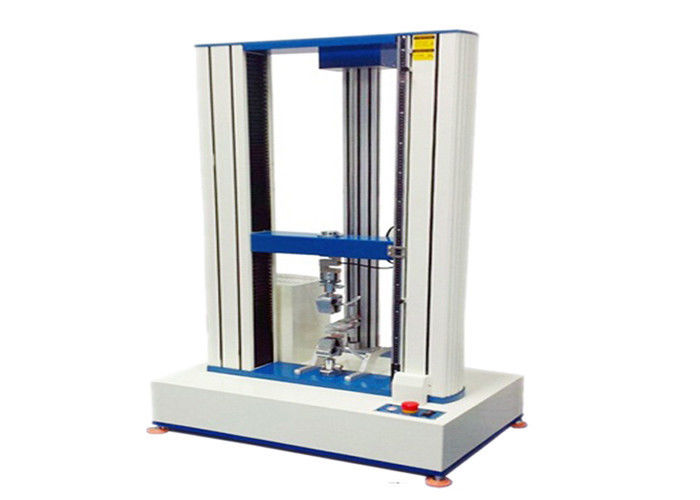

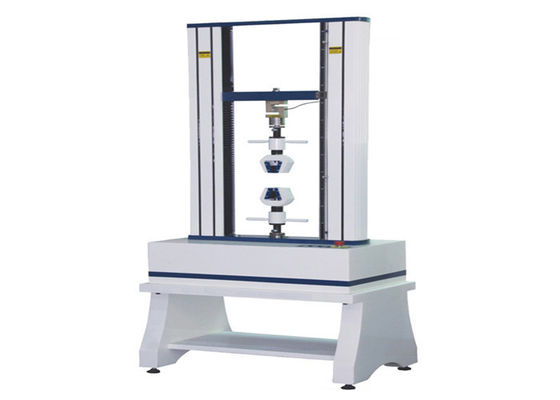

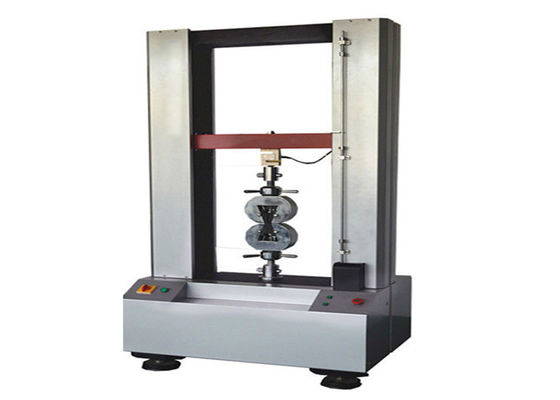

LY-1066 Electronic Rubber Glove Tension Universal Tensile Testing Machine Price
Brief Introduction:
This machinemainly used to execute the tension, compression, bending, shearing etc. test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances.The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.The machine adopts oil pressure transducer to measure load, use computer control & display load.
Application Industries:
The equipment is applicable to the manufacture of metal, adhesives, pipes, profiles, aerospace, petrochemical, waterproofing membranes, wire and cable, textile, fiber, rubber, ceramics, food, pharmaceutical packaging, geotextile, film, wood, paper, etc. The product quality supervision departments at all levels are also applicable to teaching demonstrations in colleges and universities.Tensile testing machine 50KN price computer controlled universal tensile testing machine
Characteristics:
1.A testing machine integrates various independent testing functions such as tension, compression, bending, tearing, and peeling, providing a variety of test items for users to choose;
2.The synchronous belt drives the ball screw to rotate, ensuring high-precision and stable operation;
3.1 ~ 500mm/min stepless speed change, which provides users with convenient testing of different test conditions;
4. Multi-level limit protection, overload protection, automatic high-speed return, fault prompts and other intelligent configuration to ensure the safety of the user's operation;
5. Portable manual control system to facilitate the user to quickly perform test operations, effectively ensure the safety of the system, and the reliability of the test operation;
6.The equipment adopts miniaturization and structural integration design to meet the test requirements for various occasions;
7.Professional software provides group test curve overlay analysis and statistical analysis of maximum, minimum, average, standard deviation, etc.
Specifications:
| Model | LY-1066A | LY-1066B |
| Range of speed | 0.1~500mm/min | 50~500 mm/min |
| Motor | Panasonic sevor motor | AC motor |
| Resolution | 1/250,000 | 1/150,000 |
| Capacity choice | 1, 2, 5,10, 20, 50,100, 200, 500,1000,2000kg optional | |
| Stroke | 1200 mm (can be customized) | |
| Accuracy | ± 0.5 % | |
| Force relative error | ± 0.5 % | |
| Displacement relative error | ± 0.5 % | |
| Test speed relative error | ± 0.5 % | |
| Effective testing space | 850mm | |
| Accessories | Computer, printer, system operation manual | |
| Optional accessories | Stretcher, air clamp | |
| Operation method | Windows operation | |
| Weight | 145 kg | |
| Dimension | (W * D * H) 58 * 58 * 145 cm | |
| Power | 1 PH, AC 220 V, 50/60 Hz | |
Safety Device:
| Stroke protection | Machinery, computer double protection, prevent over preset |
| Force protection | system setting |
| Emergency stop device | Handling emergencies |
