Product Details:
|
| Warranty: | 12 Months | Certification: | CE ,ISO |
|---|---|---|---|
| Place Of Origin: | Guangdong ,China | Customized Supply: | T: OEM, ODM |
| Brand Name: | LIYI | Power: | Electronic |
| Measuring Range: | 0.5μm~10000μm | Sample Machine: | 10mm*3mm |
| Power Supply: | 110 120/220-120/220-240 - V A 50/60 Hz (microscope) | Image Size: | 1280 X 1024 Pixels |
| Repeatability: | 3%(volume Average Diameter) | Optical Magnification: | 100times |
| High Light: | 1280x1024 carbon black dispersion tester,0.5microns carbon black dispersion tester,1280x1024 plastic testing instruments |
||

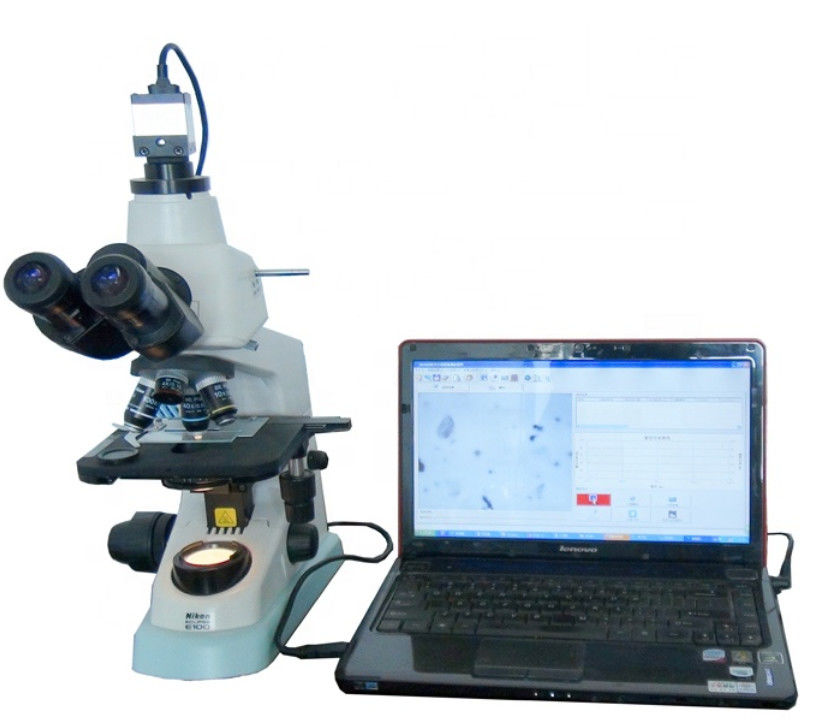

Liyi Rubber Content Carbon Black Dispersion Tester
Product Description
LY-TH3600 carbon black dispersion detector for detection of polyolefin pipes, pipe fittings, rubber and mix ingredients in color and carbon black dispersion; By carbon black particles on the scale of the situation, shape, and distributed measurement, can build these parameters and mechanical properties, antistatic property, hygroscopicity of macro performance indexes such as inner link, this will be the quality of plastic material, production technology, new product research and development have a positive impact, promote enterprise and industry technical level to promote quickly at the same time.The instrument in accordance with international standards of GB/T 18251-2000, the key parts adopt imported push around CX22 binocular microscope, high resolution, high resolution CCD camera, with powerful software support, can fast and accurately measure the size of the particles or particle group and its dispersion, all process automation, users only need to implement to add sample, software to realize the collection of particles images automatically, automatic save, automatic calculation of parameters.
Specifications
| Measuring principle | Image analysis |
| Measuring range | 0.5 microns to 10000 microns |
| Measurement analysis time | less than 3 minutes under normal conditions (measured from the beginning to show the results of the analysis). |
| Repeatability | 3% (volume average diameter) |
| Particle size of the equivalence principle | such as area of short diameter and equivalent diameter |
| Granularity statistical parameters | volume (weight) and the number of particles |
| Imaging resolution | 2048 * 1024 (3 million pixel digital camera) |
| Image size | 1280 x 1024 pixels |
| Optical magnification | 100 times |
| Communication interface, USB interface | |
| Sample machine | 10 mm * 3 mm |
| Power supply | 110 120/220-120/220-240 - v A 50/60 hz (microscope) |
Company Information
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.
Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
The Third Part Calibrations
Parts Of Exhibition we attended
Parts of our customers
FAQ
Our sevice
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3) Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
