Product Details:
|
| Humidity Range: | 20%-95%RH/15%~10%RH | Stability Humidity: | ±2%RH |
|---|---|---|---|
| Heating Time: | According To Chamber Size | Stability Temperature: | ±0.5 Centigrade |
| Temperature Range: | -40~150°C -20~150°C | Deviation: | ≤±2°C/±3%RH |
| High Light: | 95%RH walk in humidity chamber,Liyi walk in humidity chamber,20% temperature stability chamber |
||

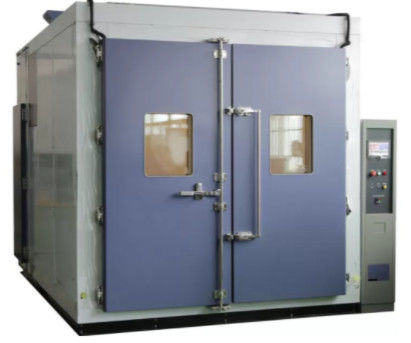

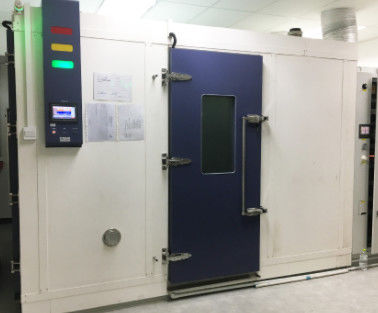

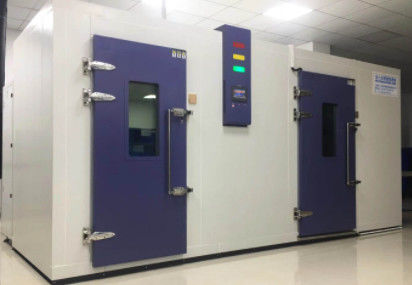

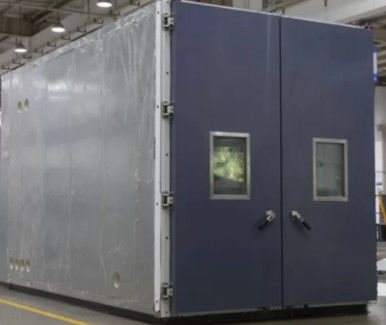

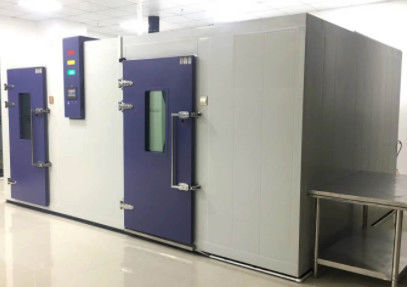

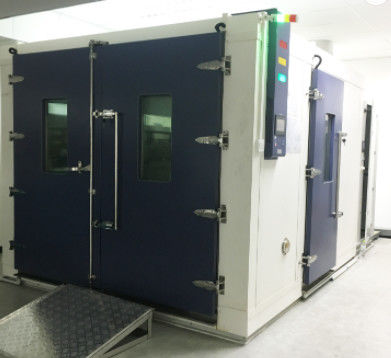

Liyi large walk in climate stablity chamber, Walk in test chamber
Liyi Walk in test chamber serves as a test site for large components, assemblies, and finished products in electrical and electronics, aerospace, batteries and automobiles, etc. Liyi manufactures both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.
Liyi Walk-in temperature and climate test chambers are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.
Can be customized:
| Volume | 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer Requirements |
| Temperature Range | -70~150C |
| Humidity Range | 20%~98%RH |
| Accuracy/Uniformity | ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H. |
| Accuracy/Volatility | ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H. |
| Cooling Time | 5.0 °C /minute |
| Inside Material | SUS#304 Stainless Steel |
| Insulation Material | High-temperature high-density amino acid ethyl ester foam insulation materials |
| Cooling System | Water-cooled / two-stage compressor |
| Protection | No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system |
| Accessories | Recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball |
| Controller | Touch screen programmable controller |
| Compressor | France's Tecumseh Brand or Germany Bitzer |
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
