Product Details:
|
| Load Capacity: | 200N | Instrument Dimension: | 240*290*750mm(L*W*H) |
|---|---|---|---|
| Diameter Of Pressing Ring: | Ring: 15mm 35mm | Readability: | 0.1N |
| Load Gauge Accuracy: | ±0.2% Of Full Scale | Instrument Weight: | 35kg |
| Standard: | ASTM D 4846 |

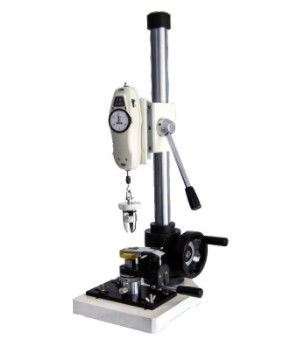

Liyi Pulling Force Equipment Button Pull Testing Machine
Digital Snap Button Pullout tester . To assess the snap attachment strength of button which is very important to design and manufacturer of garments of infants and children’s wearing. The measurement of the uniform force applied to the snap attachment shall be recorded by means of a force-measuring device .
Characteristics:
1. The digital meter made by IMADATM in Japan, with high accuracy.
2. Grasp clamp made by stainless steel, durable and easy to operate.
3. Many grasps clamp attached, can perform many snap strength tests.
4. The structure special designed, and the test result with high accuracy.
5. The TSE-B006 IMADATM is imported with original packaging, appointed and recognized by the superstore like Carrefour, Wal-Mart and so on. It’s digital incision ensures the accuracy of gripping during testing.
6. The TSEB006D, whose grip wall is special made a block groove, to ensures the accuracy of gripping during testing, in case that the buttons fall down during testing.
7.The operating handler is on the side face not the above position, which is a Humanity design for easy operating.
8. The TSE-B006C the concave buttons clamp- Universal Model is digital incision, to promote the fixing degree.
| Load capacity | 200N |
| Load gauge accuracy | ±0.2% of full scale |
| Readability | 0.1N |
| Diameter of pressing ring | 15mm 35mm |
| Instrument dimension | 240×290×750mm(L×W×H) |
| Instrument weight | 35kg |
| Standard | ASTM D 4846 |
