Product Details:
|
| Warranty: | 12 Months, 1 Year | Product Name: | Multi-Function Rubber Rheometer |
|---|---|---|---|
| Membrane Cavity Frequency: | 1.7Hz | The Time Setting Range: | 2min - 300min Arbitrary Choice |
| Weight: | 210kg | Keyword: | Rheometer |
| Rubber Mooney Viscosity Tester: | 0.1°C | Measurement Rang Of Torque: | 0N.m - 10N.m |
| Power Supply: | 220 V , 1 Phase, 50 Hz |

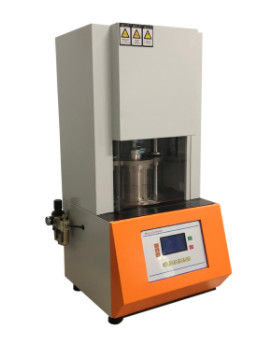

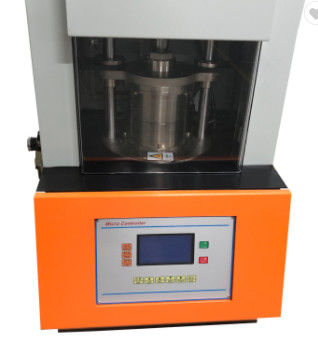

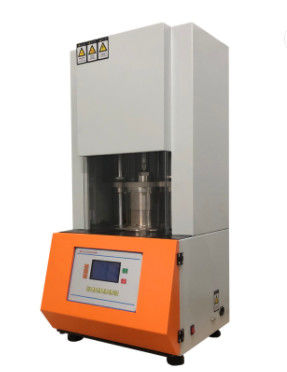

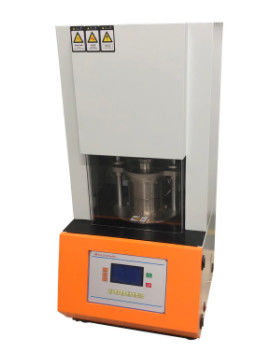

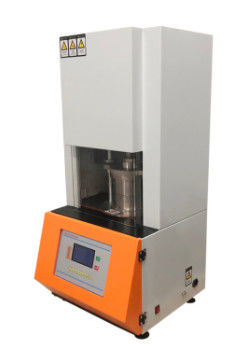

Liyi Multi-Function Computer Control Rotorless Rubber Rheometer
Liyi rubber rheometer is a widely used tester in rubber processing industry, rubber quality control and basic research rubber. For optimize formula of rubber provide accurate data. It can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.
Main characteristics:
1.Computer controled temperature, upper and lower mould errer less than 0.2°C.
2.Heating speed: 15°C/min.
3.Good repeatability.
Main features:

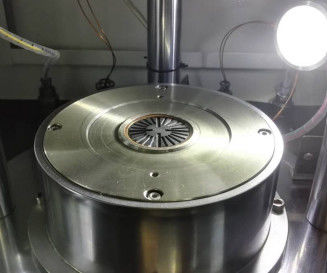

1) Rubber rheometer is really confined mold cavity, and the United States Alpha (formerly Monsanto) has done. Repeatability, and test data comparable with the Alpha. At the international leading position in the same industry.
2) Rubber rheometer development platform based on large databases, temperature control devices using the software to directly control and collection and processing. Instrument to overcome the general curing temperature of the shortcomings of using temperature controller (accuracy poor).
| Standard | GB/T16584 IS06502 |
| Temperature | Room temperature to 200 Centigrade |
| Heating-up | 15 Centigrade/min |
| Temperature fluctuation | ≤ ±0.3 Centigrade |
| Temperature resolution | 0.1 Centigrade |
| Torque range | 0-5N.M,0-10N.M,0-20N.M |
| Torque resolution | 0.001NM |
| Power | 50HZ, ~220V±10% |
| Pressure | About 0.4Mpa |
| Air-pressure requirement | 0.5Mpa-0.65MPa (user prepare the dia 8 trachea) |
| Environment temperature | 10 Centigrade-20 Centigrade |
| Humidity range | 55-75%RH |
| Compressed air | 0.35-0.40Mpa |
| Swing frequency | 100r/min(about 1.67HZ) |
| Swing angle | ±0.5 Centigrade ,±1 Centigrade ,±3 Centigrade |
| Printing |
Date,time,temperature,vulcanization curve,temperature curve,ML,MH,ts1,ts2,t10,t50,Vc1,Vc2. |
