LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine

LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine
LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine
LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine

Large Image :  LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: Liyi
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $1,280.00 - $2,890.00/ Set
Packaging Details: Standard export wooden case
Delivery Time: 1 sets needs 15 days,>1 sets to be negotiated
Payment Terms: T/T
Supply Ability: 100 Set/Sets per Month

LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine

Description
Warranty: 12 Months Driver: Sevor Motor
Capacity: 1000,2000,5000kg Test Space: 100*100*100cm( It Can Be Customized)
Test Speed: 0.5~1000mm/min Power: Electronic, 220V/50Hz
Weight: 550kg Unit: Kg,lb,n,g Switchable

LIYI Carton Strength Test Equipment Paper Box Compression Testing Machine

Product Description

Paper tube compressive testing testing machine is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry.



Characteristics:

1.Paper tube compressive testing machine adopt windows platform, all the parameter settings can be processed in the dialog box, and it operates easily.
2.Paper tube compressive testing testing machine use a single-screen operation, do not need to switch the screen.
3.With three languges in simplified Chinese, traditional Chinese and English, the software interface can be switched easily.
4.Choosing translational, overlapping mode at the same time to make sure a number of curve date comparison.
5.With a variety of measurement units, measure in imperial&metric are switchable.
6.With automatic magnification function, in order to achieve the most appropriate size of the graphics.
7.With an advanced design of machine structure which have strong rigidness and small volume but light weight.
8.Paper tube compressive testing machine can do test of compression strength, stack strength and peak value.

Specifications

Can be customized:

Capacity 500,1000,2000,5000kg
Resolution 1/250,000
Unit kg,lb,n,g switchable
Test space 100*100*100cm( it can be customized)
Drive system servo system,precision ball screw, DC variable speed drive system
Test speed 0.1~200mm/min
Dimension 170×100×185cm
Weight 550kg
Power 1phase,220V/50Hz



Safety Device:

Stroke protection,Force and Elongation protection,Emergency stop device,Sensing device when specimen is destroyed.

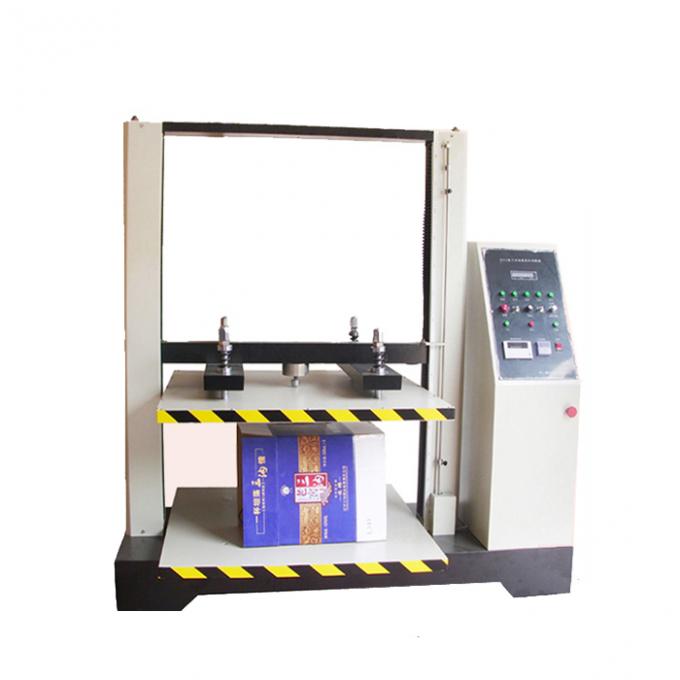

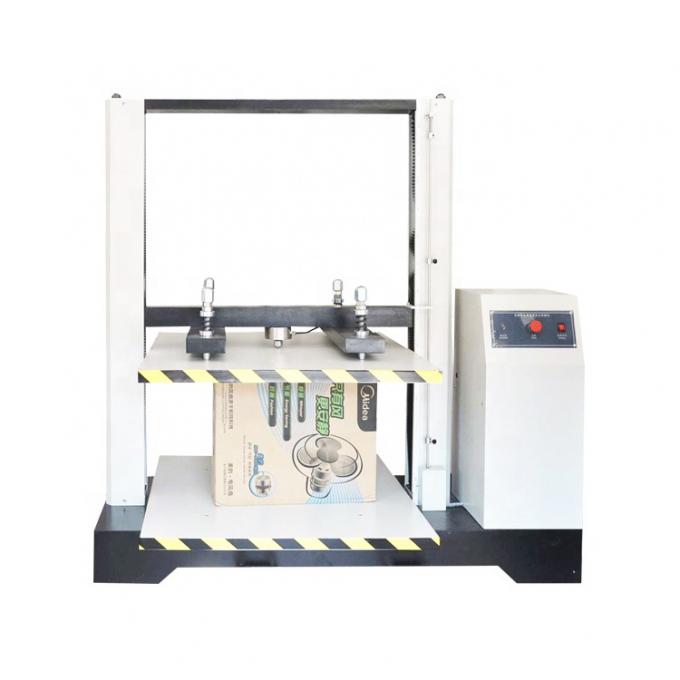

Product Effects

LIYI Carton Strength Test Equipment Paper Box Compression Testing MachineLIYI Carton Strength Test Equipment Paper Box Compression Testing Machine
