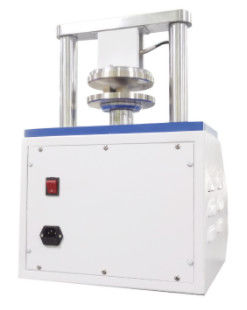

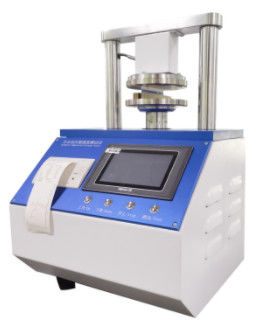

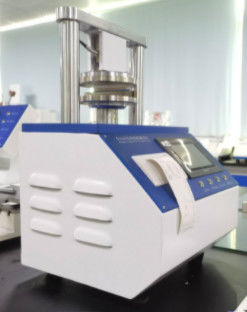

Liyi Paper Ring Crush Pressure Tester Core Compression Testing Machine

Liyi Paper Ring Crush Pressure Tester Core Compression Testing Machine
Liyi Paper Ring Crush Pressure Tester Core Compression Testing Machine Liyi Paper Ring Crush Pressure Tester Core Compression Testing Machine Liyi Paper Ring Crush Pressure Tester Core Compression Testing Machine Liyi Paper Ring Crush Pressure Tester Core Compression Testing Machine Liyi Paper Ring Crush Pressure Tester Core Compression Testing Machine Liyi Paper Ring Crush Pressure Tester Core Compression Testing Machine

Large Image :  Liyi Paper Ring Crush Pressure Tester Core Compression Testing Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: Liyi
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $1,000.00 - $2,000.00/ Set
Packaging Details: Standard export wooden case
Delivery Time: 1 sets needs 15 days,>1 sets to be negotiated
Payment Terms: T/T
Supply Ability: 100 Set/Sets per Month

Liyi Paper Ring Crush Pressure Tester Core Compression Testing Machine

Description
Accuracy: 0.01kg Color: Customer Required
Power: Electronic, 220V/50Hz Capacity: 5000N
Standard: JIS

Liyi Paper Ring Crush Pressure Tester Core Compression Testing Machine

Product Description

Design standards: TAPPI-T472, JIS-P8126

Uses:

RCT machine is used for testing the ring crush strength of the paperboard. With the proper accessories (optional), it’s also available to test the column compress, ring crush, concora crush and adhesion strength of the corrugated board.

Specifications

Customized:

Capacity 5000N
Accuracy 0.01kg
Platen dimension 100×100mm(or customize by user needs)
Test stroke 90mm (or customize by user needs)
Test speed 12.7mm/min
Return function self-return after test finishing
Weight 60kg
Power 1φ,220V/50Hz



Accessories of RCT machine

Side pressure strength test= Ring Crush Tester+ Parallel cutting knife + Side pressure counselling piece
Ring crush strength test= Ring Crush Tester+ Ring crush sampler +Ring crush fixture
Bonding strength test = Ring Crush Tester + Hood strength stripping frame
Flat crush strength test = Ring Crush Tester+ Flat crush sampler

Product Effects

Liyi Paper Ring Crush Pressure Tester Core Compression Testing MachineLiyi Paper Ring Crush Pressure Tester Core Compression Testing Machine
