Product Details:
|
| Depth Of The Throat: | 130 Mm | Dimensions: | 535 * 225 * 580 Mm |
|---|---|---|---|
| Power Supply: | 110 V/220 V, 60/50 Hz | Max. Height Of Specimen: | 170 Mm |
| Light Source: | Halogen Lamp | Display: | LCD Screen |
| Standard: | ASTM | Accuracy: | 1.25μm (0.00125mm) |

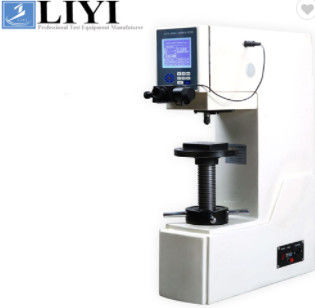

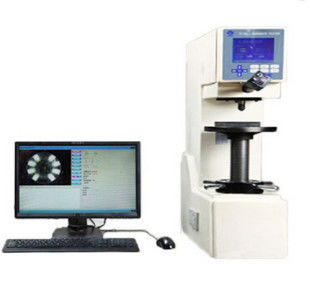

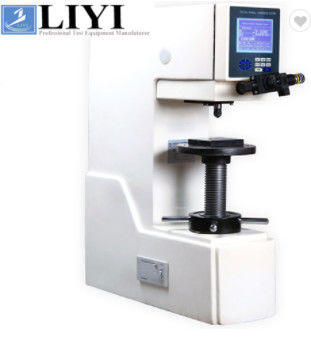

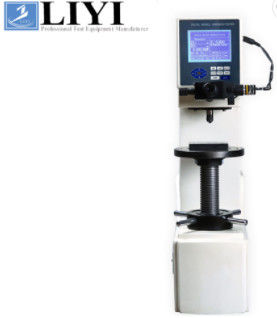

Liyi Price Of Durometer Testing Machine Digital Brinell Hardness Tester
Main Function:
New design, touch screen Digital Brinell hardness tester offer an easily, quality and durable solution for a wide range of Brinell scale testing application.
FEATURES:
1. Close loop structure, use high accuracy load cell, force feedback, ensure more accuracy measurement.
2. High precision and repeatability
3. Eyepiece built-in encoder, easy operation.
4. Automatic, high speed and motorized turret
5. Adopted 5.6’’ Full color high resolution touch screen, menu structure, more easy operation.
6. Automatic calculation and hardness conversion function
7. With testing data storage function
8. Easily hardness value calibration function
9. RS232 interface
10. Adjustable LED light source
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.
| Model | LY-B-3000T | |
| Test Force | kgf |
62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
| N |
612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N |
|
| Hardness Scale | HBW2.5/62.5, HBW2.5/187.5, HBW5/125,HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 | |
| Test Range | 8-650HBW | |
| Hardness Reading | Display on digital LCD touch screen | |
| Microscope | 20X digital measuring Microscope | |
| Resolution | 1.25μm (0.00125mm) | |
| Dwell Time | 1-99s | |
| Turret | Automatic (motorized by touch screen control) | |
| Load force | Automatic | |
| Test space | 220*120mm (H*D) | |
| Power Supply | AC220V, 50Hz | |
| Execute Standard | ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 | |
| Dimension & weight |
Size: 530*210*750mm (L*W*H); Net weight:135kg Packaging: 625*425*870mm (L*W*H), Gross weight:149kg |
|
