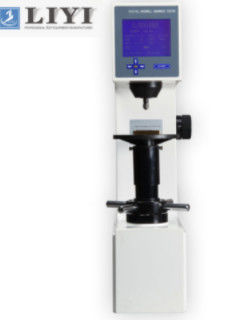

Liyi Universal Micro Rockwell Hardness Tester

Liyi Universal Micro Rockwell Hardness Tester
Liyi Universal Micro Rockwell Hardness Tester Liyi Universal Micro Rockwell Hardness Tester Liyi Universal Micro Rockwell Hardness Tester Liyi Universal Micro Rockwell Hardness Tester Liyi Universal Micro Rockwell Hardness Tester Liyi Universal Micro Rockwell Hardness Tester

Large Image :  Liyi Universal Micro Rockwell Hardness Tester

Product Details:
Place of Origin: Guangdong, China
Brand Name: Liyi
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: $2,150.00 - $4,590.00/ Set
Packaging Details: Standard export wooden case
Delivery Time: 1 sets needs 15 days,>1 sets to be negotiated
Payment Terms: T/T
Supply Ability: 100 Set/Sets per Month

Liyi Universal Micro Rockwell Hardness Tester

Description
Warranty: 12 Months, 1 Year Model Number: LY-HBRVD-187.5
Tolerance Range: ±1.0% Power Supply: AC220V + 5%, 50~60 Hz
Maximum Height: 170mm Key Words: Rockwell Hardness Tester Testing Machine
Dwell Time: 1~60S Maximum Throat Depth: 130mm

Liyi Universal Micro Rockwell Hardness Tester

Product Description



Liyi Hardness Tester is mainly used in the Surface coating, steel, non-ferrous metal, ceramics, alloys, etc; Heat treatment, carbonation,hardening layer, nit-riding layer;Small and thin parts, etc. Hardness test such as on the depth and gradient of the carbonized layers and quenched hardened layers.

Our Advantages:

1. We are Manufacturer, selling our produces.
2. The Fastest delivery for urgent orders.
3. Guaranteed goods high precision and stability.
4. Provide our customers 1 year after sales service.



Main Function and Features:
1. Back-light brightness is adjustable in 20 levels.
2. With high-definition optical system.
3. Diagonal length D1 and D2 encoders input to reduce manual reading error.
4. The objective lens and the pressure head can automatically switch and locate accurately.
5. Test results and data processing can be output by printer.
6. 4-inch large LCD screen with menu structure.
7. Test process is automatic and easy to operate.
8. Easy for hardness scales conversion.

Specifications



Rockwell scale

HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH, HRK,HRL, HRM,HRR,

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Conversion scale Conversion table
Preliminary test force 10Kg(98.0N),3Kg (29.42N)
Total test force

60Kg (588N), 100Kg (980N), 150Kg (1471N),15Kg(147.1N),30Kg(294.2N),45Kg(441.3N)

Tolerance range:±1.0%

Resolution 0.5HR
Hardness value range HRA:20~88 HRB:20~100 HRC:20~70 HR15N:70~91 HR30N:42~80 HR45N:20~70 HR15T:73~93 HR30T:43~82 HR45T:12~72 HRE:70~100 HRL:50~115 HRM:50~115 HRR:50~115
Hardness data read Dial
Loading method Manual
Dwell time Manual
Allowed specimen measurement space

maximum height :170mm

maximum throat depth:130mm

Size / weight

Instrument size:460*160*660mm(L×W×H)/Net Weight: 85kg

Packing size: 625*430*900mm(L×W×H)/ Gross Weight: 95kg

Executive standard GB/T230.2 , ASTM E18 , ISO 6508 , GB 7407 , ASTM D785 , JJG112 , JJG884
