Product Details:
|
| Customized Support: | OEM, ODM, OBM | Uses: | Thermal Shock Chamber |
|---|---|---|---|
| Inner Size: | 400x350x300cm, Can Custom | Simulated Load IC（kg): | 3.5kg |
| Test Standard: | QC/T17-92,EIA 364-32,SJ/T10186-91Y73,GJB | Controllor: | Programmable Temperature Controllor Imported From Japan |
| Power: | Electronic, AC380V/50HZ Three-phase Four-wire Ac Power | Electronic, AC380V/50HZ Three-phase Four-wire Ac Power: | Water-cooled Or Air-cooled, Taikang Compressor In France |
| Resolution: | Temp: 0.01centigrade/ Time: 1min | Temperature Deviation: | Less Than 2 Centigrade |
| Temperature Recovery Time: | Less Than 5mins |

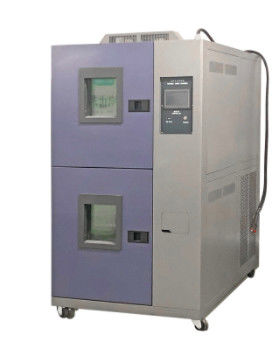

Liyi Hot Cold Test Chamber Environmental Climatic Thermal Shock Test Chamber
Thermal shock test chamber occurs when a thermal gradient causes different parts of an object to expand by different amounts. This differential expansion can be understood in terms of stress or of strain, equivalently. At some point, this stress can exceed the strength of the material, causing a crack to form. If nothing stops this crack from propagating through the material, it will cause the object's structure to fail.
Can be customized:
| Inner size(mm) | 400×350×300 | |||
| Temperature range | High temperature chamber:RT~+150°C Low temperature:RT~-60°C | |||
| Temperature deviation | Less than ±2°C | |||
| Temperature conversion time | Less than 10S | |||
| Temperature recovery time | Less than 5min | |||
| Material |
External material: SUS#304 Stainless steel plate Internal material: SUS#304 Stainless steel plate |
|||
| Coolting system |
Water-cooled or air-cooled, Tecumseh compressor in France, Environment friendly refrigerant |
|||
| Controllor | Programmable temperature controllor imported from Japan | |||
| Temperature sensor | PT 100 *3 | |||
| Setting range |
Temperature: -100.00+200.00°C / Time: OH1M ~ 9999H 59M / Cycle: 10000 cycle |
|||
| Resolution | Temperature: 0.01°C / Tim: 1min | |||
| Output mode | PID + PWM + SSR control method | |||
| Simulated load IC (kg) | 3.5kg | |||
| Standard accessories | Cable hole, lighting equipment | |||
| Cooling system | Water-cooled/air-filled type | |||
| Power | AC380V/50HZ Three-phase four-wire ac power | |||
| Additional features |
The outlet and return it checks for taste known control /CM BUS (RS-485) remote monitoring management system /Ln2 liquid nitrogen rapid cooling control device |
|||
| Remarks |
It can be customiazed according to customer demands. Technology index refer to product description.Delivery time within 45days. |
|||
