Product Details:
|
| Temperature Range: | RT+10℃~70℃ | Ultraviolet Wavelength: | 290nm~400nm UV-A340, UV-B313 |
|---|---|---|---|
| Outer Dimensions: | 70*135*145cm | Standard: | ASTM D4329 |
| Keyword: | 100 Set/Sets Per Month | Himidity Range: | ≥95%R.H |
| Sample Quantity: | 75mm*300mm 24pieces, 75mm*150mm 48 Pieces | Power Supply: | 220V 50Hz |

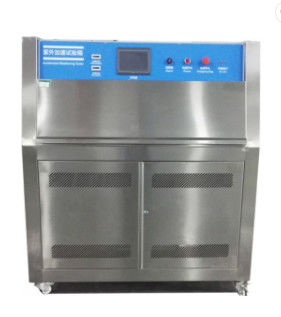

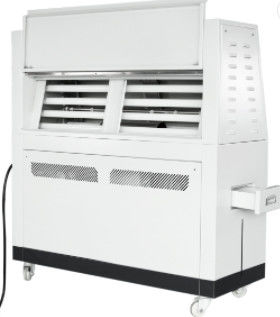

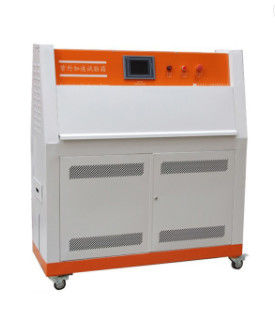

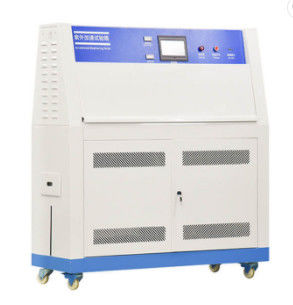

Liyi Customized Ultraviolet Tester UV Weathering Accelerated Aging Test Chamber Weatherometer
Liyi UV aging test machine can provide reliable aging test data to make the exact prediction of products' weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula.
Techincal parameter:
1) The condensing device simulated the outdoor moisture influence, can achieve 100% humidity.
2) A electronic irradiance control system.
3) Use the blackboard temperature sensor measuring temperature accurate, which can repeated the test results.
4) Humidity, condensation, water spray circulating consecutive testing.
5) Intensity of illumination has CR-10 calibrating pegging and automatic calibration procedures (American Q-the Lab patent technology).
6) Sample quantity: 75mm×300mm 24pieces, 75mm×150mm 48 pieces.
Designing standard: IEC61215, ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN 534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020, ect.
Can be customized:
| Model | LY-ZW | |
| Inside dimensions (cm) | 45×117×50 | |
| Outer dimensions (cm) | 70×135×145 | |
| Rate of work | 4.0(KW) | |
| Performance index | Temperature range | RT+10℃~70℃ |
| Himidity range | ≥95%R.H | |
| Distance between lamps | 35mm | |
| Distance between samples and lamps | 50mm | |
| Specimen number | L300mm×W75mm, about 20pics | |
| Ultraviolet wavelength | 290nm~400nm UV-A340, UV-B313, UV-C351(state clearly in your order ) | |
| Rate of the lamp | 40W | |
| Controlling system | Controller | touch screen programmable controller |
| Illumination heating system | all independent system, nickel chrome alloy electrical heating type heater | |
| Condensation humidifying system | stainless steel shallow evaporative humidifier | |
| Blackboard temperature | double metal blackboard mometer | |
| Water supplying system | humidification water supplying automatic control | |
| Exposure way | moisture condensation way exposure, light radiation exposure | |
| Safety device | leakage, short circuit, super temperature, water shortage and over current protection | |
