Product Details:
|
| Warranty: | 12 Months, 12 Momths | Certificate: | CE ISO |
|---|---|---|---|
| Function: | UV Aging Test | UV Light: | UVA340, UVB313 Optional |
| Color: | Customize | Light Source: | UVA UVB |
| Standard: | BS.EN.ASTM | Weight: | 100kg |
| Power Supply: | 220V 50Hz | Material: | SUS 304 Stainless Steel |

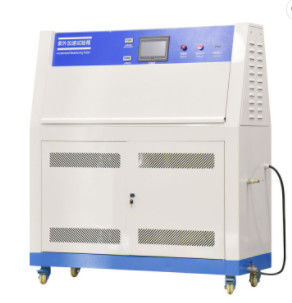

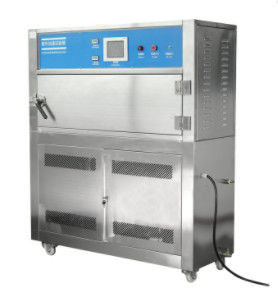

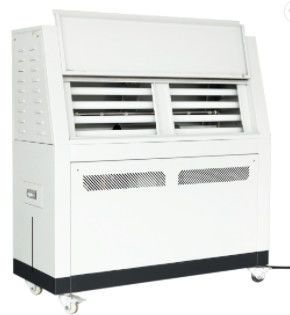

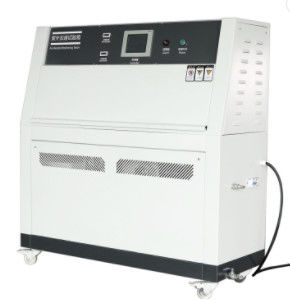

Liyi UV Weathering Aging Chamber, UV Accelerated Weathering Tester
Liyi UV aging test machine can provide reliable aging test data to make the exact prediction of products' weathering fastness(ageing resistance)., which is conducive to sift and optimize the formula.
Designing Standard: IEC61215, ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN 534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020, ect.
Can be customized:
| Model | LY-ZW |
| Inside dimensions (cm) | 45×117×50 |
| Outer dimensions (cm) | 70×135×145 |
| Rate of work | 4.0(KW) |
| Temperature range | RT+10℃~70℃ |
| Himidity range | ≥95%R.H |
| Distance between lamps | 35mm |
| Distance between samples and lamps | 50mm |
| Specimen number | L300mm×W75mm, about 20pics |
| Ultraviolet wavelength | 290nm~400nm UV-A340, UV-B313, UV-C351(state clearly in your order ) |
| Rate of the lamp | 40W |
| Controller | touch screen programmable controller |
| Illumination heating system | all independent system, nickel chrome alloy electrical heating type heater |
| Condensation humidifying system | stainless steel shallow evaporative humidifier |
| Blackboard temperature | double metal blackboard mometer |
| Water supplying system | humidification water supplying automatic control |
| Exposure way | moisture condensation way exposure, light radiation exposure |
| Safety device | leakage, short circuit, super temperature, water shortage and over current protection |
