Product Details:
|
| Warranty: | 12 Months | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model Number: | LY-CY | Temperature Range: | RT+10°C~60°C |
| Ozone Flow Rate: | 12~16mm/s | Inner Chamber Size: | Customized |
| CE Certificate: | Offered | Sample Shelf Roating Speed: | 20~25mm/s |
| Customized Support: | OEM, ODM | Ozone Concentration Range: | 0~500pphm (or Custom Made) |
| Inner Material: | SUS 304 Stainless Steel | Ozone Concentration Deviation: | 10% |
| Controller: | Touch Screen Programmable Controller | Certification: | ISO |
| High Light: | ASTM1149 Ozone Aging Test Chamber,Rubber Ozone Aging Test Chamber,Polymer Ozone Aging Test Chamber |
||

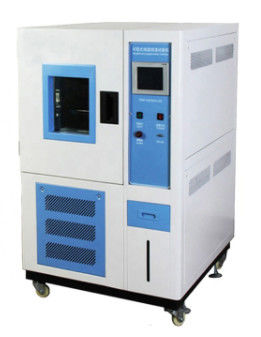

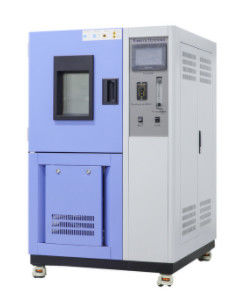

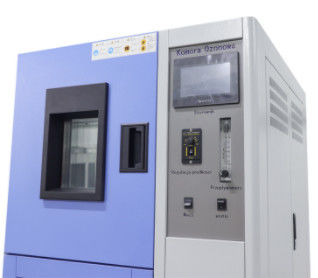

Liyi Rubber Ozone Aging Test Chamber
Liyi ozone aging test chamber is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test. Ozone content in the atmosphere is very low, but it is the main factors of polymer materials aging. Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time. The studay of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antiozonant protection efficiency method,and then take effective aging proof measures to improve the service life of rubber products.
Corresponding standards:
JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003, GB 2951
Characteristics:
Liyi ozone aging test chamber equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.
| Model | LY-CY-80 | LY-CY-150 | LY-CY-225 | LY-CY408 | LY-CY-800 |
| Inner size W*H*D(cm) | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 80*100*100 |
| Outer size W*H*D(cm) | 85*140*95 | 95*150*115 | 95*165*115 | 105*175*135 | 145*190*135 |
| Inner material | SUS 304 stainless steel | ||||
| Outer material | SPCC Painted | ||||
| Temperature range | RT+10°C~60°C | ||||
| Temperature deviation | ±0.5°C (no load) | ||||
| Temperature uniformity | ±2°C (no load) | ||||
| Ozone concentration range | 0~500pphm (or custom made) | ||||
| Ozone concentration deviation | 10% | ||||
| Ozone flow rate | 12~16mm/s | ||||
| Sample shelf roating speed | 20~25mm/s | ||||
| Controller | Touch screen programmable controller | ||||
| Ozone generator | Using voltage silent discharge tube produce ozone | ||||
| Power | AC 380V 3 phase 4 lines | ||||
Safty device:
1. Power overload, short circuit protection
2. Grounding protection
3. Water protection
4. In order to protect the equipment, all alarm will automatically cut off the power supply, and an audible tip.
Environmental conditions:
1. The temperature: 15 °C ~ 35 °C.
2. Relative humidity: no more than 85% RH.
3. No around strong vibration, no strong electromagnetic field effect.
4. No dust and high concentration around the corrosive substance.
5. No direct sunlight or other heat source direct radiation.
6. Around without strong airflow, when the surrounding air need compulsory stream.
7. Test box should be placed smooth, maintain a level.
8. Test box around the there shall be a certain distance, convenient maintenance operation.
