Product Details:
|
| Hardness Value: | Digital LCD Screen | Loading Method: | Automatically |
|---|---|---|---|
| Objective: | 10X (observe); 40X (measure) | Total Magnification: | 100X (observe); 400X (measure) |
| Turret: | Automatic Turret | Conversion Scale: | HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T HV, HK, HBW |
| Power: | 220V ± 5%, 50/60 Hz (110V Is Available) | Usage: | Hardness Tester |
| Warranty: | 12 Months | Packing Size And G/W: | 710*420*627mm 68kg |
| High Light: | Automatic Turret Hardness Tester Machine,LCD Screen Vickers Hardness Testing Machine,LCD Touch Screen Vickers Hardness Tester |
||

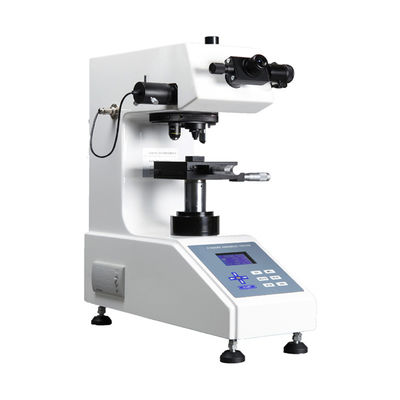

8 Inch LCD Touch Screen Automatic Turret Digital Micro Vikers Hardness Tester Machine
Main purpose and application:
1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
3. Glass, chip and ceramic material.
Specifications:
|
Turret |
Automatic Turret |
|
Objective |
10X (observe); 40X (measure) |
|
Eyepiece |
10X digital eyepiece with built-in encoder |
|
Total Magnification |
100X (observe); 400X (measure) |
|
Testing force |
10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N) |
|
Hardness scale |
HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 |
|
Conversion scale |
HRA, HRB, HRC, HRD, HRF, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T HV, HK, HBW |
|
Loading speed |
≤50μm/sec |
|
Indenter |
Standard Rectangular pyramid diamond indenter (136º±0.5º) |
|
Min. measuring unit |
0.01μm |
|
Hardness value rang |
8HV-2900HV |
|
Data display |
8 inch LCD touch screen |
|
Loading method |
Automatically (Load, dwell and unload the testing force) |
|
Duration time |
1-99s (each step is 1 second) |
|
Objective lens center and indenter center |
Coincidence accuracy error < 1um (objective lens center position can be adjusted) |
|
X-Y Testing Table |
Dim.:100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm |
|
Test space |
Maximum height: 100mm (vertical); Throat depth: 130mm (horizontal) |
|
Light Source |
LED Cold light source (can be continuous use for 24 hours, no heat generate ensure stable working, servicing life can reach 100,000 hours) |
|
Machine size and N/W |
540*260*650mm 50kg |
|
Packing size and G/W |
710*420*627mm 68kg |
|
Power Supply |
220V ± 5%, 50/60 Hz (110V is available) |
|
Executed Standard |
GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734 |
Reference pictures:
