Product Details:
|
| Place Of Origin: | Guangdong, China | Warranty: | 12 Months |
|---|---|---|---|
| Power Supply: | 220V 50Hz | Max Volum Of Test Liquid (L): | 15 |
| Function: | Climate Test | Test Chamber Size (cm): | 60*45*40 |
| Volume (cm): | 107*60*118 | Package Material: | Wooden Case |
| Certificate: | CE ISO | Keyword: | Sals Spray Tester |
| High Light: | 120L Salt Spray Test Machine,ASTM B117 Salt Fog Test Machine,90L Programmable Salt Fog Test Chamber |
||

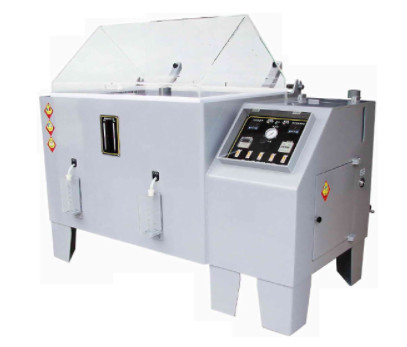

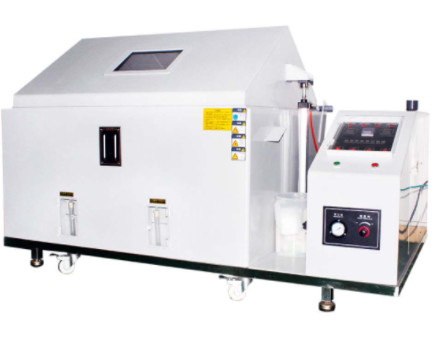

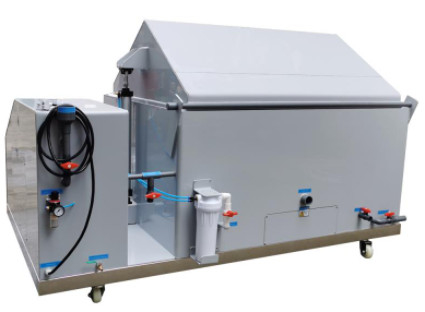

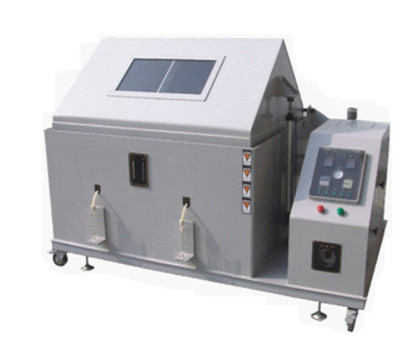

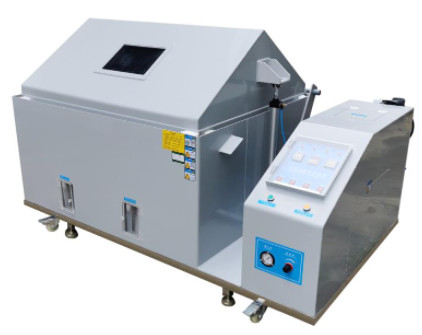

Salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect
| Model | LY-609-60 | LY-609-90 | LY-609-120 | LY-609-200 |
| Design Standards |
GB/T 10587-2006,GB/T 10125-1997, JISD0201,H8502,H8610,K5400,Z2371 |
|||
| Test chamber capacity (L) | 108L | 270L | 600L | 1440L |
|
Temperature |
Test chamber | NSS.ACSS 35°C±1°C/CASS 50°C±1°C | ||
| Air cylinder | NSS.ACSS 47°C±1°C/CASS 63°C±1°C | |||
|
Test chamber size LxWxD(cm) |
60*45*40
|
90*60*50
|
120*100*50
|
200*120*60
|
|
Max volum of test liquid (L) |
15 | 25 | 40 | 40 |
| Volume LxWxD(cm) | 107*60*118 | 141*88*128 | 190*130*140 | 270*150*150 |
| Power | AC220V,10A | AC220V,15A | AC220V,30A | AC220V,30A |
| Spray quantity | 1.0~2.0ml/80cm2/h | |||
| PH | 6.5~7.2 3.0~3.2 | |||
1.LCD display and a pid controller or touch screen programmable controller.
2.Entire PVC sheet material, the internal ring with the use of advanced three dimensional flutter high technology products, strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.
3.Controller are in the same panel, the operation simple and clear.
4.Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test laboratory.
