Product Details:
|
| Warranty: | 1 YEAR, 12 Months | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Package Material: | Wooden Case | Standard: | ASTM |
| MOQ: | 1 Set | Certification: | ISO |
| Volume (cm): | 107*60*118 | Test Chamber Capacity (L): | 108,270,600,1440(can Customer Required)) |
| Customized Support: | OEM, ODM, OBM | ||
| High Light: | Salt Spraying Corrosion Test Chamber,Programmable Salt Spray Test Machine,CNS3627 Salt Spray Test Machine |
||

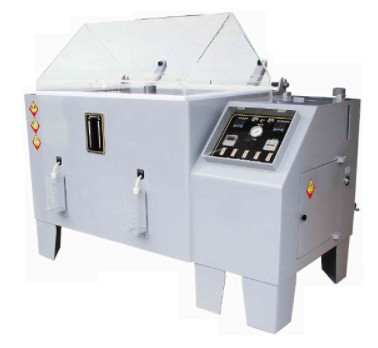

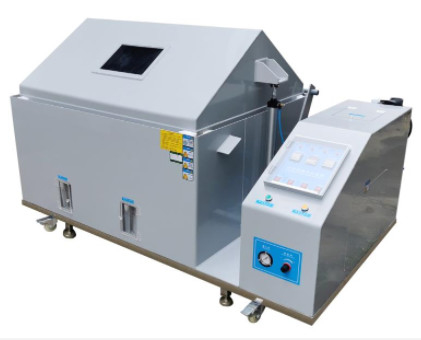

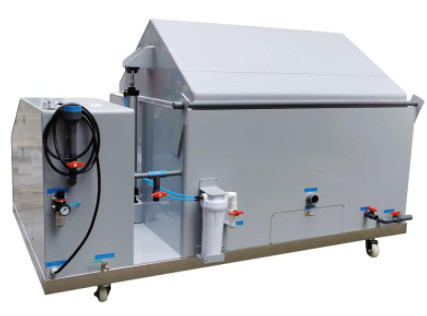

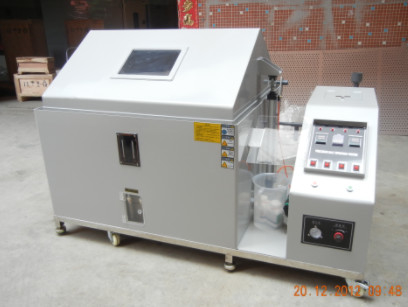

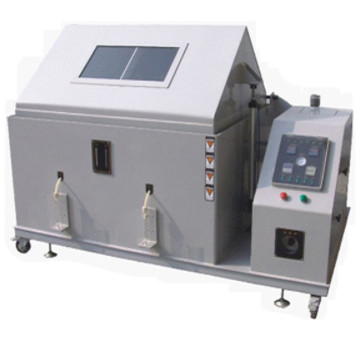

Programmable Chamber Spray Instrument Salt Spraying Corrosion Test Chambers
Salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect
ISO9227,CNS3627,3885,4159,7669,8886,JISD-0201,H-8502,H-8610,K-5400,Z-2371,ISO 3768,3769,3770,ASTM B-117,B-268,GB-T2423,GJB 150.
1. LCD display and a pid controller or touch screen programmable controller.
2. Entire PVC sheet material, the internal ring with the use of advanced three dimensional flutter high technology products, strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.
3. Controller are in the same panel, the operation simple and clear.
4. Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test laboratory.
| Model | LY-609-60 | LY-609-90 | LY-609-120 | LY-609-200 |
| Design Standards |
GB/T 10587-2006,GB/T 10125-1997, JISD0201,H8502,H8610,K5400,Z2371 |
|||
| Test chamber capacity (L) | 108L | 270L | 600L | 1440L |
|
Temperature |
Test chamber | NSS.ACSS 35°C±1°C/CASS 50°C±1°C | ||
| Air cylinder | NSS.ACSS 47°C±1°C/CASS 63°C±1°C | |||
|
Test chamber size LxWxD(cm) |
60*45*40
|
90*60*50
|
120*100*50
|
200*120*60
|
|
Max volum of test liquid (L) |
15 | 25 | 40 | 40 |
| Volume LxWxD(cm) | 107*60*118 | 141*88*128 | 190*130*140 | 270*150*150 |
| Power | AC220V,10A | AC220V,15A | AC220V,30A | AC220V,30A |
| Spray quantity | 1.0~2.0ml/80cm2/h | |||
| PH | 6.5~7.2 3.0~3.2 | |||
