Product Details:
|
| Warranty: | 12 Months | Weighing Range: | 10-1200g |
|---|---|---|---|
| Density Precision: | 0.01g/cm3 | Value Showed: | Gold Karat , Density , Purity% |
| Function: | The Mixture Proportion Function Of Two Mixtures | Customized Support: | OEM, ODM |
| Power: | Electronic | Maximum Weight: | 1200g |
| Weighing Precision: | 0.01g | Setting Of Temperature: | Can Be Set Freely |
| Setting Of Proportion: | 7:3 | Proportion Value: | Can Input The Different Proportion Value , Such As 24, 100 |
| High Light: | ASTM Portable Digital Density Meter,ISO standards Electronic Density Meter,JIS Digital Density Meter |
||
Portable Digital Density Meter Price
Suitable for:
Rubber, Plastic, Film, Electric wire, Glass industry, Liquid, Adding additives, New materials research lab.
Principle:
According to ASTM,JIS,GB/T,ISO standards, adopting the buoyancy method and the water displacement method of Archimedes principle, it can accurately and directly measure the value.
Functions:
1. It has the function of showing mixture proportion for the new materials research and the choice of mixture proportion, it can directly show the proportion value.
2.It has the function of upper limit and lower limit, it can judge whether the density of the sample is appropriate or not.
3.The measuring is fast, shortening the testing time.
4.It has the RS-232C interface easily connect with the PC and the printer.

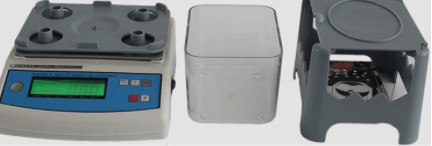

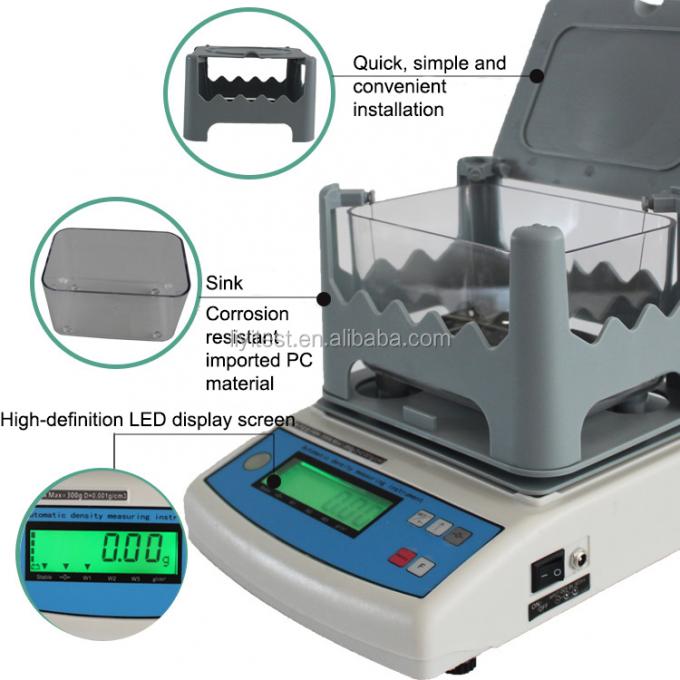

5.It adopts design of tank (the maximum dimension of the sample is W70*D100*H25mm for solid measuring), this can decrease the inaccuracy caused by supporting wire’s buoyancy.

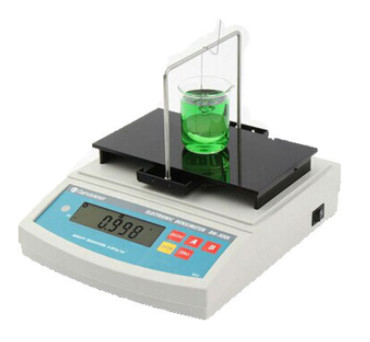

6. It has the liquid model, and the optional equipment can be purchased. It can satisfy the testing of solid and liquid.
| Model | LY--300S | LY-120S |
| Weight | 4.4kg | |
| Size(W*H*D)mm | 425 *175 *325 | |
| Power supply voltage | AC100~240V / 50HZ | |
| Density accuracy | 0.001g/cm3 | 0.0001g/cm3 |
| Density range | 0.001—99.999 g/cm3 | 0.0001—99.9999g/cm3 |
| Weighing accuracy | 0.005g | 0.001g |
| Maximum weighing | 300g | 120g |
| Measuring type | Any solution can be measured | |
| Result display | Density value | |
| Specific gravity measuring frame | Stainless steel specific gravity measuring frame | |
| Function setting | Setting of temperature, density of solution, weight value of standard measuring weight and weight value of water | |
| Result correct mode | Distilled water validation | |
