Product Details:
|
| Warranty: | 12 Months | Place Of Origin: | Place Of Origin |
|---|---|---|---|
| Product Name: | Ring Crush Tester/Edge Crush Tester/Flat Crush Test | Accuracy: | 0.01kg |
| Test Stroke: | 90mm (or Customize By User Needs) | Test Speed: | 12.7mm/min |
| Certificate: | ISO/CE/FCC/3C/ROHS | Customized Support: | OEM, ODM |
| Power: | Electronic, 220V/50Hz | Capacity: | 2000N |
| Platen Dimension: | 100*100mm | Weight: | 60kg |
| Return Function: | Self-return After Test Finishing | Certification: | ISO |
| Item: | Flat Crush Test | ||
| High Light: | 12.7mm/min ring crush tester,ROHS ring crush tester,2000N edge crush tester |
||

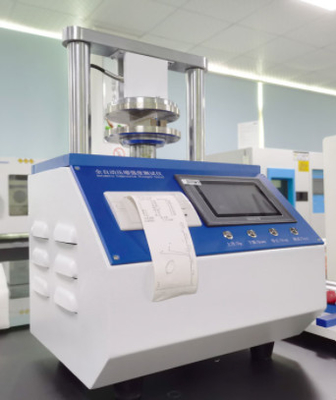

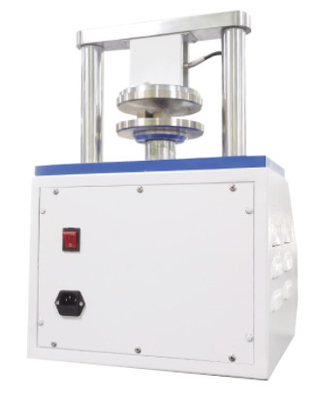

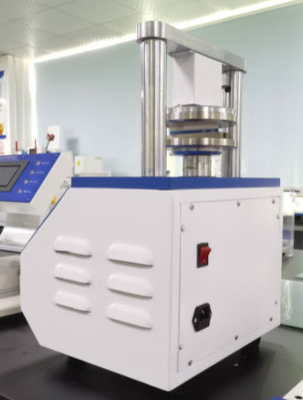

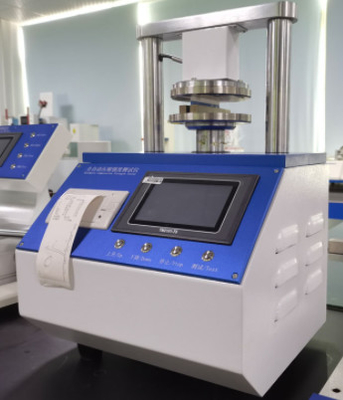

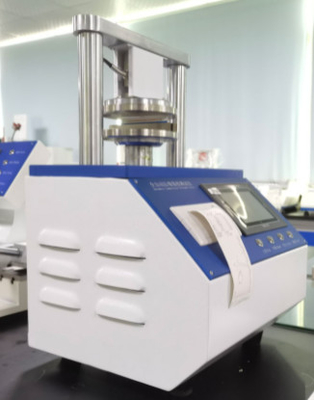

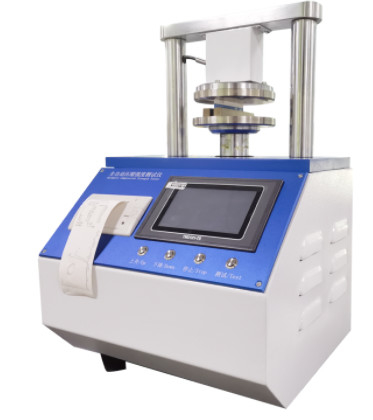

Ring Crush Tester/Edge Crush Tester/Flat Crush Test
Ring Crush Tester/Edge Crush Tester/Flat Crush Test is used for testing the ring crush strength of the paperboard. With the proper accessories (optional), it’s also available to test the column compress , ring crush, concora crush and adhesion strength of the corrugated board.
Test Standard:TAPPI-T472 JIS-P8126
| Capacity | 2000N |
| Accuracy | 0.01kg |
| Platen dimension | 100×100mm(or customize by user needs) |
| Test stroke | 90mm (or customize by user needs) |
| Test speed | 12.7mm/min |
| Return function | self-return after test finishing |
| Weight | 60kg |
| Power | 1φ,220V/50Hz |
Accessories:
Side pressure strength test=Ring Crush Tester+Parallel cutting knife+Side pressure counselling piece;
Ring crush strength test= Ring Crush Tester+ Ring crush sampler +Ring crush fixture;
Bonding strength test = Ring Crush Tester + Hood strength stripping frame;
Flat crush strength test = Ring Crush Tester+ Flat crush sampler.
