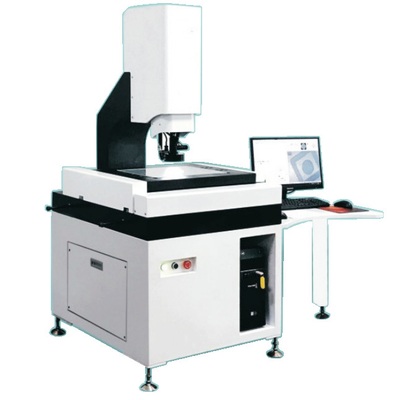

2D CNC Vmm Optical Measuring Instruments Dia 108mm CE Listed

2D CNC Vmm Optical Measuring Instruments Dia 108mm CE Listed
2D CNC Vmm Optical Measuring Instruments Dia 108mm CE Listed

Large Image :  2D CNC Vmm Optical Measuring Instruments Dia 108mm CE Listed

Product Details:
Place of Origin: CHINA
Brand Name: LIYI
Certification: CE,ISO
Model Number: LY-3020CP
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Standard export wooden case
Delivery Time: 15 working day
Payment Terms: L/C, D/A
Supply Ability: 50 SET PER ONE MONTH

2D CNC Vmm Optical Measuring Instruments Dia 108mm CE Listed

Description
Customized Support: OEM, ODM Warranty: One Year
Digital Resolution: 1um Color: White
Keyword: Video Measuring Machine Metal Table Size: 354 *228mm
Zoom Lens Magnification: 0.7 ~ 4.5 Working Distance: 108mm
Materials: Marble
High Light:

CE Optical Measuring Instruments

,

Vmm Optical Measuring Instruments

,

108mm vmm video measuring machine

2D CNC Optical Measurement Image Instrument Vmm Video Measuring Machine



Overview:

This product has the characteristics of high speed and precision, and can perform multiple functions on a single machine, greatly reducing the cost of repeatedly purchasing machines and the waste of space. It can effectively detect the contour, surface shape, dimension, angle and position of various workpieces. It is especially suitable for PCB, film, protective film, optical glass, electronics, large sheet metal parts, connectors, precision mechanical parts, electronic components, semiconductor components and other industries to achieve rapid and accurate detection in large quantities.





Technology:

Model LY-3020CP LY-4030CP LY-5040CP
Measuring range X 300cm 400cm 500cm
Y 200cm 300cm 400cm
Z 200cm 200cm 200cm



Workbench

Marble table 500mm*380mm 660mm*500mm 800mm*640mm
Glass table size 340mm*240mm 440mm*340mm 540mm*440mm
Load 50kg 50kg 50kg
Machine weight 460kg 550kg 630kg
Overall dimension of machine (mm) 760*660*1700 900*800*1750 1100*950*1750







Optical system

CCD 130W high definition digital camera
camera lens Continuous zoom lens with PMS manual freeze position
Video magnification Image multiples 36x-210x
Working distance 78mm
Display resolution 0.0001mm
Property market 1.1mm-8.1mm
Grating ruler 1um patch grating ruler
Control system ZK full closed loop control system
Measurement software Zk3D-CNCautomatic image measurement software
Measurement accuracy ≦(3+L/200)um
Power 110V-220V±10% 50/60Hz



Reference pictures:

2D CNC Vmm Optical Measuring Instruments Dia 108mm CE Listed 0

2D CNC Vmm Optical Measuring Instruments Dia 108mm CE Listed 1

2D CNC Vmm Optical Measuring Instruments Dia 108mm CE Listed 2







Company:

Guangdong LIYI Technology Co.,Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing,marketing all kinds of environmental equipment.Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

To strengthen the quality awareness,perfect management system,improve product credit,meet customers increasing requirements, our company brought into ISO9001:2008 international quality management system and obtained the certificate: N0006997-1.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

2D CNC Vmm Optical Measuring Instruments Dia 108mm CE Listed 3
