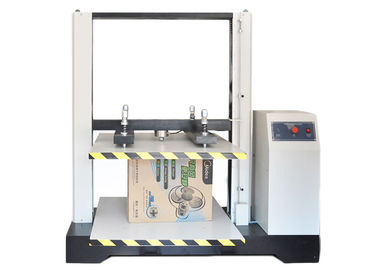

  1. Name: Computer Control Box Compression Tester for cartons pressure strength
  2. Product Introduction:
    1. Quick Detail

Capacity

500kg, 1000kg, 2000kg, 5000kg or customize

Resolution

1/100,000

Correctness of force

Better than ±1%

Correctness of distortion reading

Better than ±1%

Effectual range of testing force

1~100%F.S

Unit

kgf,gf ,N,kN,lbf



2.2 Brief Introduction:

Computer Control Box Compression Tester used for measuring the pressure strength of cartons, containers, etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.



2.3 Characteristics:

      1 Adopting windows platform, all the parameter settings can be processed in the dialog box, and it operates easily.

2. Using a single-screen operation, do not need to switch the screen.

3. with three languages in simplified Chinese, traditional Chinese and English, the software interface can be switched easily.

4. Choosing translational, overlapping mode at the same time to make sure a number of curve date comparison.

5. With a variety of measurement units, measure in imperial and metric are switchable.

6. Also, this paper tube compression test equipment has automatic magnification function, in order to achieve the most appropriate size of the graphics.

7. With an advanced design of machine structure which have strong rigidness and small volume but light weight.

8. It can do test of compression strength, stack strength and peak value.





2.4 Specifications:

Capacity

500kg, 1000kg, 2000kg, 5000kg or customize

Resolution

1/100,000

Correctness of force

Better than ±1%

Correctness of distortion reading

Better than ±1%

Effectual range of testing force

1~100%F.S

Unit

kgf,gf ,N,kN,lbf

Test space

1000×1000mm  (can customize)

Space between platen

1000mm (can customize)

Drive System

servo system,precision ball screw, DC variable speed drive system

Test speed

0.01~500mm/min, keyboard inputing

Return speed

500mm/min

Power

1φ,220V±10%  50Hz

Stop mode

Set limits of security, urgent stop key, programable force and elongation setting, specimen damage sensing



2.5 Safety Device:

Stroke protection, Force and Elongation protection, Emergency stop device, Sensing device when specimen is destroyed.

2.6  Software Functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7. With many units of measurement, the metric system and british system can switch;

8. Have automatic calibration function;

9. Have user-defined test method function

10. Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;

12. Can test tensile, compression, peel, fatigue and so on.
