Product Details:
|
| Test Chamber Capacity(L): | Corrosion Resistance Fog Test Chamber | Test Chamber Size: | 60*45*40 Cm |
|---|---|---|---|
| Max Volum Of Test Liquid(L): | 108L | Volume: | 107*60*118cm |
| Voltage: | 220V | Controller: | PID Controller |
| Warranty Period: | 12 Months | Usage: | Salt Spray Corrosion Test Chamber |
| Power: | Electronic | Material: | PVC Material |
| High Light: | salspray test equipment,salt spray corrosion test chamber |
||

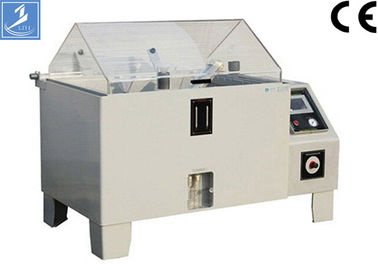

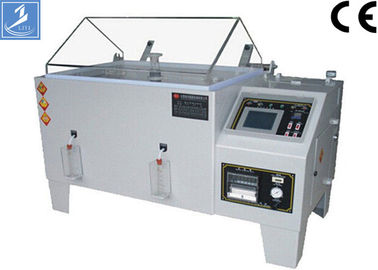

Constant Salt Spray Test Chamber Anti Corrosion Fog Test Machine
Usage:
Salt spray test machine can determine the corrosion resistance of iron metal or the iron
metal inorganic film or organic film test, such as: electroplating, anode processing, conversion
coating, painting, ect.
Design standards:
ISO9227,CNS3627,3885,4159,7669,8886,JIS D-0201,H-8502,H-8610,K-5400,Z-2371,ISO 3768,3769,3770,ASTM B-117,B-268,GB-T2423,GJB 150.
Characteristics:
1. LCD display and a pid controller or touch screen programmable controller.
3. Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products, strong structure, fresh, never deformation and acid and
alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.
4. Controller are in the same panel, the operation simple and clear.
5. Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS )
either of the test laboratory
Specifications:
|
Model |
LY-609-60 |
LY-609-90 |
LY-609-120 |
LY-609-200 |
|
Design Standards |
GB/T 10587-2006,GB/T 10125-1997,JIS-D0201,H8502,H8610,K5400,Z2371 |
|||
|
Test chamber capacity (L) |
108L |
270L |
600L |
1440L |
|
Temperature |
Test chamber |
NSS.ACSS 35°C±1 C/CASS 50°C±1°C |
||
|
Air cylinder |
NSS.ACSS 47°C±1° C/CASS 63°C±1°C |
|||
|
Test chamber size LxWxD(cm) |
60*45*40 |
90*60*50 |
120*100*50
|
200*120*60 |
|
Max volum of test liquid (L) |
15 |
25 |
40 |
40 |
|
Volume LxWxD(cm) |
107*60*118 |
141*88*128 |
190*130*140 |
270*1 50*150 |
|
Power |
AC220V,10A |
AC220V,15A |
AC220V,30A |
AC220V, 30A |
|
Spray quantity |
1.0~2.0ml/80cm2/h |
|||
|
PH |
6.5~7.2 3.0~3.2 |
|||
