Product Details:
|
| Name: | LY-XB Plastic Testing Machine,rubber Film Izod Impact Testing Machine | Designing Standard: | GB/T1843, ISO180, GB/T21189, |
|---|---|---|---|
| Energy: | 5.5J Or 22J | Display: | Liquid Crystal |
| Impact Speed: | 3.5m/s | Pendulum Up Angle: | 150degree |
| Test Accuracy: | 0.1% | Resolution: | 1% |
| Blade Fillet Radius: | 0.8mm | Energy Loss: | 1.0J-2%, 2.75J-1%, 5.5J-0.5% |
| Warranty: | 1Years | ||
| High Light: | viscosity tester equipment,abrasion testing machine |
||

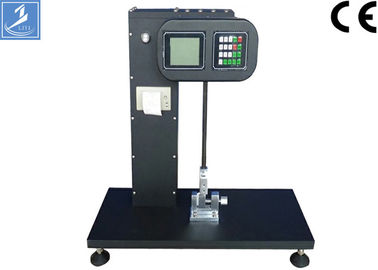

LY-XB Plastic Testing Machine,rubber Film Izod Impact Testing Machine
Film Impact Tester Products:
izod impact test machine price is mainly used in hard plastic (including plank, materials, plastic profile), the increase of nylon, glass fiber reinforced plastic, ceramic, and cast stone, electrical insulating materials etc. Nonmetal material impact toughness is determined.
Characteristic:
English characters LCD shows the results, the storage of test results, and has the energy loss to be automatic correction function. Simple structure, convenient operation, data accurate and reliable.
Designing standard: GB/T1843, ISO180, GB/T21189, GB/T2611, JB/T8761
Model:
| LY-XB5.5 | LY-XB22 | |
| Impact speed: | 3.5m/s | |
| Pendulum energy: | 1.0J, 2.75J, 5.5 J | 11J 22J |
| Pendulum up angle: | 150degree | |
| Impact center distance | 335mm | |
| Test accuracy: | ±0.1% | |
| Resolution: | 1% | |
| Distance from impact blade to clamp: | 22.0mm±0.2mm | |
| Blade fillet radius: | R=0.8mm±0.2mm | |
| Energy loss: | 1.0J-2%, 2.75J-1%, 5.5J-0.5% | 11J,22J-0.5% |
| Tester size(L*W*H) | (830x300x890)mm | |
The main technical indicators:
1). Maximum impact energy: 3J;
2). Sample holder hole diameter: Φ89, Φ60, Φ50;
3). Test Size: 100 × 100mm;
4). Swing range: R300mm;
5). Punch size: Φ25.4mm, Φ12.7mm
6). swing elevation: 90 °
Sample working conditions: the sample at a temperature of 23 ± 2 ℃, relative humidity 45% to 55% of the environment for at least 4 hours, and tested in this environment.
