Product Details:
|
| Material: | Steel | Size: | Customized |
|---|---|---|---|
| Temperature: | -70℃~150℃ | Humidity: | 20%~98% Customizied |
| Color: | Customized | Controller: | Imported Tecumseh Compressor |
| Certificate: | CE,ISO | Name: | Electrical Temperature Humidity Test Chamber / Controlled Environmental Chambers |
| High Light: | constant temperature and humidity chamber,stability test chamber |
||

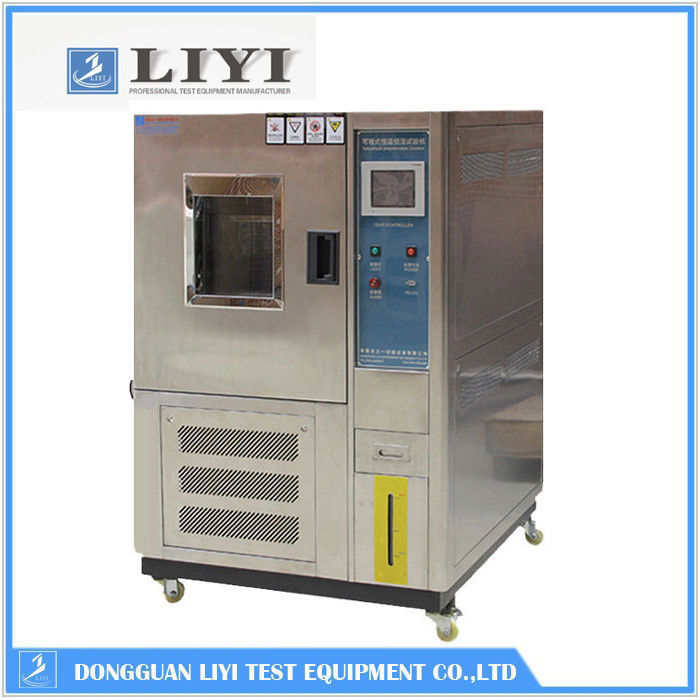

Electrical Temperature Humidity Test Chamber / Controlled Environmental Chambers
Introduction:
Temperature humidity chambers (also known as climatic or climate test chambers) simulate the effects that a range of temperature and humidity conditions have on a product or material.Temperature and Humidity Test Chamber Maintenance principle: Since the chamber is composed of several systems including electric, cooling and mechanical system. Once any problem emerges, the whole equipment shall be checked and analyzed systematically. Generally, the “other reason first, equipment problem then” principle shall apply, which means firstly check if the problems are caused by external factors like the cooling system & power, then check the equipment step by step, for example, firstly check the electric system according to the electric wiring diagram, then check if there is any problem with the cooling system. It is not advisable to remove or replace any part before the reason is clear, or it might cause many troubles.
Inspect standard:JJF-1101,GB/T 10592,GB/T 10586
Testing standards:YD/T 2061,HB 7122.3,6783.7,GJB 5382.7,GJB 150,GB/T 2423,5170.2,5170.5,5179.2, ASTM E512,NF EN 60068-2-38,CNS 12565,12566,KS C0227,KS C022
Specification:
| Material | Inner material | SUS 304# steel plate | |||
| Outside material | SUS 304# steel plate(surface disposing) | ||||
| Thermal insulation material |
Thermostability high density chlorine formic acid foam insulator material |
||||
| System wind pathround-robin mode | centrifugal fan-broadband enforce circulation | ||||
| Refrigeration way | Single stage compression refrigeration | ||||
| Refrigerator | whole sealing piston France Taikang brand Compressor | ||||
| Freezing fluid |
R4O4A or USA Dupont environmental protection refrigerant(R23+R404) |
||||
| Condensation way | forced air cooling or water-cooling | ||||
| Heater | Nichrome heating wire heating | ||||
| Humidifier | Semi-enclosed steam humidification | ||||
| Water-provide way | full-automatic periodical feeding | ||||
| Standard configuration |
1 Observe window(double-deck cavity toughened glass),1 50mm test hole in the left,1 PL inner chamber lamp,2clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
||||
| Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection,Protection switch,fuse stoppage warning system |
||||
| Power | 1φ 220V AC±10% 50/60Hz 3φ 380V AC±10% 50/60Hz | ||||
