Product Details:
|
| Name: | UV Accelerated Weathering Tester Environmental UV Light Testing Equipment | Inside Dimensions: | 45 * 117 * 50 Cm |
|---|---|---|---|
| Outer Dimensions: | 70 * 135 * 145 Cm | Controller: | South Korean Imported Touch Screen Programmable Controller |
| Temperature Range: | RT + 10 °C ~ 70 °C | Rate Of Work: | 4.0 (KW) |
| Himidity Range: | ≥ 95% R.H | Distance Between Lamps: | 35 Mm |
| Distance Between Samples And Lamps: | 50 Mm | Rate of the Lamp: | 40 W |
| High Light: | accelerated uv testing,accelerated weathering machine |
||

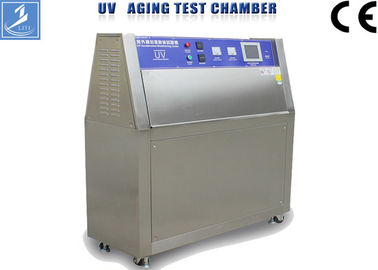

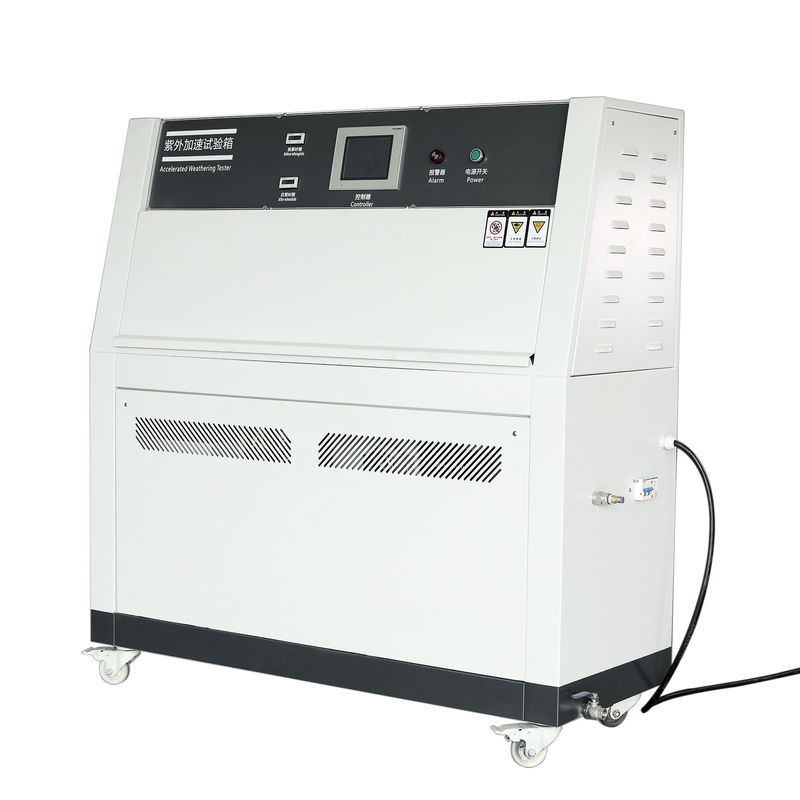

UV Accelerated Weathering Tester Environmental UV Light Testing Equipment
Standards:
It has become the standards of the UV test, fit standards of ISO, ASTM, DIN, JIS, SAE, BS, ANSI, GM, U.S.
GOVT, etc.
Product description
Korean TEMI 880 Accelerated Weather UV Testing Chamber is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
Specifications:
|
Model |
LY-ZW |
|
|
Inside Dimensions (CM) |
45 * 117 * 50 cm |
|
|
Outer Dimensions (CM) |
70 * 135 * 145 |
|
|
Rate of Work |
4.0 (KW) |
|
|
Performance Index
|
Temperature Range |
RT+10 °C ~ 70 °C |
|
Humidity Range |
≥ 95 % R.H |
|
|
Distance Between Lamps |
35 mm |
|
|
Distance Between Samples and Lamps |
50 mm |
|
|
Specimen Number |
L300 mm * W75 mm, about 20 pieces |
|
|
Ultraviolet Wavelength |
290nm~400nm UV-A340,UV-B313,UV-C351 (state clearly in your order ) |
|
|
Rate of the Lamp |
40 W |
|
|
Controlling System |
Controller |
South Korean imported touch screen programmable controller |
|
Illumination Heating System |
All independent system, nickel chrome alloy electrical heating type heater |
|
|
Condensation Humidifying System |
Stainless steel shallow evaporative humidifier |
|
|
Blackboard Temperature |
Double metal blackboard meter |
|
|
Water Supplying System |
Humidification water supplying automatic control |
|
|
Exposure Way |
Moisture condensation way exposure, light radiation exposure |
|
|
Safety Device |
Leakage, short circuit, super temperature, water shortage and over current protection |
|
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
