Product Details:
|
| Power: | Electronic | Accuracy: | ±0.5°C, ±2.5%RH |
|---|---|---|---|
| Refrigerant: | R23/R404A | Heating Rate: | ≤3°C/min |
| Controller: | Temi 880 LCD Touch Screen | Cooling Rate: | Average 1°C/min |
| Resolution: | ±0.01°C, ±0.1%R.H | Operating Interface: | Touch Screen |
| High Light: | Electronic Walk In Environmental Chamber,Temperature Test Room For Car,Temperature Humidity Test Room |
||

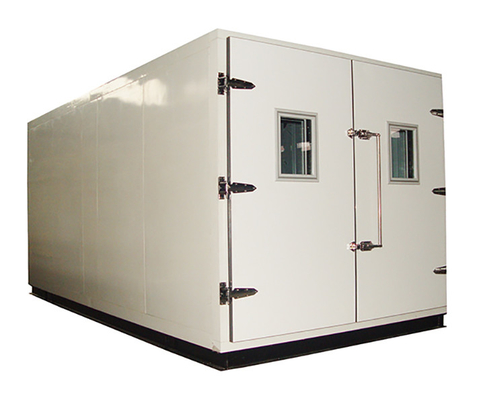

Walk-in Test Chamber/Temperature Test Room For Car ±0.5°C, ±2.5%RH Accuracy
Application:
Walk In Environmental Chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
Characteristics:
1. Temperature humidity test room has a big temperature / humidity range and can meet user’s entire requirement. It adapts to unique balance thermoregulation & humidifying way and can get a safety, precise temperature humidity environment. It has stability, balance heating, humidifying function and also can proceed in high precision, high stability temperature humidity control.
2. Temperature humidity test room is equipped with high precision intelligentized thermoregulator, temperature and humidity adapt LCD display control 7551 program instrument ( it also can use OYO-5461 according to user requirement), can choose the temperature humidity recode instrument.
3. Temperature humidity test room can choose computer for remote control according to the function
4. Automatic select the refrigerating circuit, the automatic control instrument can automatic choose operate refrigerating circuit’s function according to the temperature set value, and direct-on line starting refrigerating machine in high temperature condition which can cooling directly.
5. The interior door is equipped with big observation window which convenient for viewing the test status of specimen.
6. This product is equipped with advanced safety protection device --- residual current device; overheat protector, phase failure protector, water-break protector.
Specification
| Model | LY-5200T Walk In Environmental Chamber |
| System | Balanced Temperature & Humidity Control System |
| Temp. range | -70°C~150°C |
| Humid. range | 20 ~ 98 percent R.H. |
| Temp. & Humid. accuracy | ± 0.3°C; ± 2 percent R.H |
| Temp. & Humid. regularity | ± 1°C; ± 3 percent RH |
| Resolution | 0.1°C, 1 percent, P.I.D control |
| Heating up | -40°C ~ +100°C within 45 min |
| Heating down | 20°C~ -20°Cwithin 40min |
| Interior dimension(W×D×H) | 160×180×185cm(Accept customized) |
| Exterior dimension(W×D×H) | 180×215×195cm (Accept customized) |
| Interior material | Stainless steel plate(SUS304) |
| Exterior material | Stainless steel plate(SUS304) |
| Insulation | Rigid foam |
| Refrigeration system | Air cooled, Hermetic compressor, single stage refrigeration system. |
| Display | LCD |
| Safety devices | No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
| Accessories | Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp. |
| Weight | Approx. 400kg |
| Power | AC220V±10 percent 50/60Hz |
Product Effects
Company Information
LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
