|Usage:||Hardness Tester||Power Supply:||220V 50Hz|
automatic hardness tester,
digital hardness tester

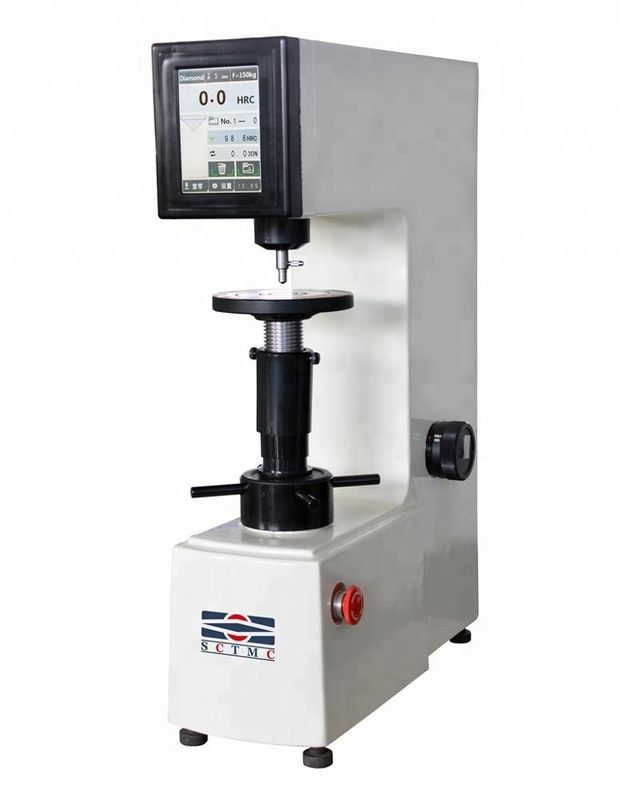

Electronic Digital Display Rockwell Hardness Tester for Metal
1. We are Manufacturer, selling our produces.
2.Give you Reasonable price.
3.The Fastest delivery for urgent orders.
4. Guaranteed goods high precision and stability
5. Provide our customers 2 year after sales service.
Special designed for improving the working efficiency of our customers as its automatically design. After adjusting the focal length, the objective lens and indenter can be switched automatically. And the testing force can load, dwell and unload automatically. Then the objective lens will automatically return to the initial focus state, and the length of indentation can be measured directly.
1. Operational panel is concise and clear with menu structure, and with English and Chinese interface, easy switching.
2. The hardness values, diagonal length, dwell time, testing frequency, environmental temperature, the maximum /minimum value of test, average value and repeatability can be displayed directly.
3. The testing data able to be printed directly by the built-in printer.
4. Can be connected with computer, used the image analysis software to analyzing the physical and chemical properties of the material.
Main purpose and the scope of the application:
1. Ferrous metals, non-ferrous metals, castings and alloy materials.
2. Heat treatment and carbonation specimen, quenching and mini parts which with miscellaneous point.
3. Applicable to the Knoop hardness test of glass, ceramic, agate, precious stones and other non-metallic hard but brittle materials.
Switch Type of Objective
lens and Indenter
10g (0.098N),25g (0.245N),50g (0.49N),100g (0.98N ),200g (1.96N),
300g (2.94N),500g (4.9N),1000g (9.8N)
|Conversion Scale||HRA,HRB,HRC,HRD, HRF,HBW,H15N,H30N,H45N,H15T,H30T,H45T|
|Min. Measuring Unit||0.01μm|
|Hardness Value Rang||1HV-4000HV|
Hardness Value of
|Digital LCD Screen|
Total Magnification of
100X(For Observation),400X(For Measurement)
(Can be extended to 200X or 600X)
|Loading Method||Automatically(Load, dwell and unload the testing force)|
LED Cold light source (can be continuous use for 24 hours, servicing
life can reach 100,000 hours)
|Power Supply||110V/220V + 5%, 50/60 Hz|
|X-Y Testing Table||
Dim.:100×100 mm,Max. Travel Range: 25×25mm,Moving Resolution Ratio:0.01mm
(X-Y Digital Testing Table with digital LCD Screen for Optional)
Built-in Printer(Hardness Value, The Max. And Min. Value, Testing times and
Built-in RS-232 interface
|Executed Standard||GB/T4340.2 Chinese Standard, JJG151 Inspection Rules|
10X Omron digital micro eyepiece ; 10X and 40X objective lens;
Vickers indenter; X-Y Testing Table; Flat Fixture; Thin fixture, Small
Parts Fixture; Level bubble vail; Power Cable; Dust-proof cover;
Instruction Book; Certificate of quality; Warranty Card; Accessory case
2 pieces: Standard block of hardness
4 pieces: horizontal adjusting screw
Image Analysis Software; Metallographic Structure device;
Knoop Indenter; Knoop Hardness Block; 15X micrometer eyepiece;
2.5X Objective lens; 20X Objective lens; 60X Objective lens
LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Contact Person: Kayle Huang
