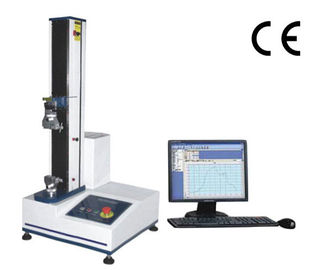

Computer Control Software Tensile Testing Machine

Computer Control Software Tensile Testing Machine
Computer Control Software Tensile Testing Machine

Large Image :  Computer Control Software Tensile Testing Machine

Product Details:
Place of Origin: Dongguan Province, China.
Brand Name: LIYI
Certification: CE Certificate
Model Number: LY-1065
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000 ~ 3000/set
Packaging Details: Standard export package
Delivery Time: 15 business days after deposit
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram

Computer Control Software Tensile Testing Machine

Description
Name: Computer Control Software Tensile Testing Machine Range Of Speed: 0.1~500 Mm/min
Resolution: 1/250, 000 Whole Stroke: 850 Mm (can Be Customized)
Accuracy: ± 0.5 % Force Relative Error: ± 0.5 %
Effective Testing Space: 120 Mm Operation Method: Windows Operation
Weight: 70 Kg Power: 1 PH, AC 220 V, 50/60 Hz





Computer Control Software Tensile Testing Machine with Panasonic sevor motor​





Design standards:

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, ASTM D638, ISO527.





Application:

This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack

and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles,

paper, board and finished products.





Characteristics:

1. That Using the computer as the main control machine plus the special testing software of our

company can conduct all of testing parameter, work state, collecting data&analysis, result display

and printing output.

2. Have steady performance, high accuracy, powerful software function and easy operation.

3. Use the USA high-precision load cell.





Specifications:

Model

LY-1065

Range of speed

0.1~500 mm/min

Motor

Panasonic sevor motor

Resolution

1/250, 000

Capacity choice

1, 2, 5,10, 20, 50,100, 200, 500 kg optional

Whole stroke

850 mm (can be customized)

Accuracy

± 0.5 %

Force relative error

± 0.5 %

Displacement relative error

± 0.5 %

Test speed relative error

± 0.5 %

Effective testing space

120 mm

Accessories

computer, printer, system operation manual

Optional accessories

stretcher, air clamp

Operation method

Windows operation

Weight

70 kg

Dimension

(W * D * H) 58 * 58 * 145 cm

Power

1 PH, AC 220 V, 50/60 Hz





Safety Device:

Stroke protection

Upper and lower protection, prevent over preset

Force protection

system setting

Emergency stop device

Handling emergencies





Software functions:

1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7. With many units of measurement, the metric system and british system can switch;

8. Have automatic calibration function;

9. Have user-defined test method function;

10. Have test data arithmetic analysis function;

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics.





Accessories:

Computer Control Software Tensile Testing Machine 0
