Product Details:
Place of Origin: DONGGUAN,CHINA
Brand Name: LIYI
Certification: CE ISO
Model Number: LY-8210
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: PLYWOOD PALLET BOX
Delivery Time: 10 WORK DAYS
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000 SETS PER MONTH

Box Compression Testing Machine price/ Carton Box Compression Strength Tester

Description
Test Space: 500*500*500 Unit: N,KG,Lb Switchover
Force Range: 1~100%FS Capacity: 1000,2000,5000kg
Driver: Sevor Motor Warranty: 1 Year
High Light:

pressure testing equipment

,

leakage testing equipment

Box Compression Testing Machine price/ Carton Box Compression Strength Tester



Introduction:

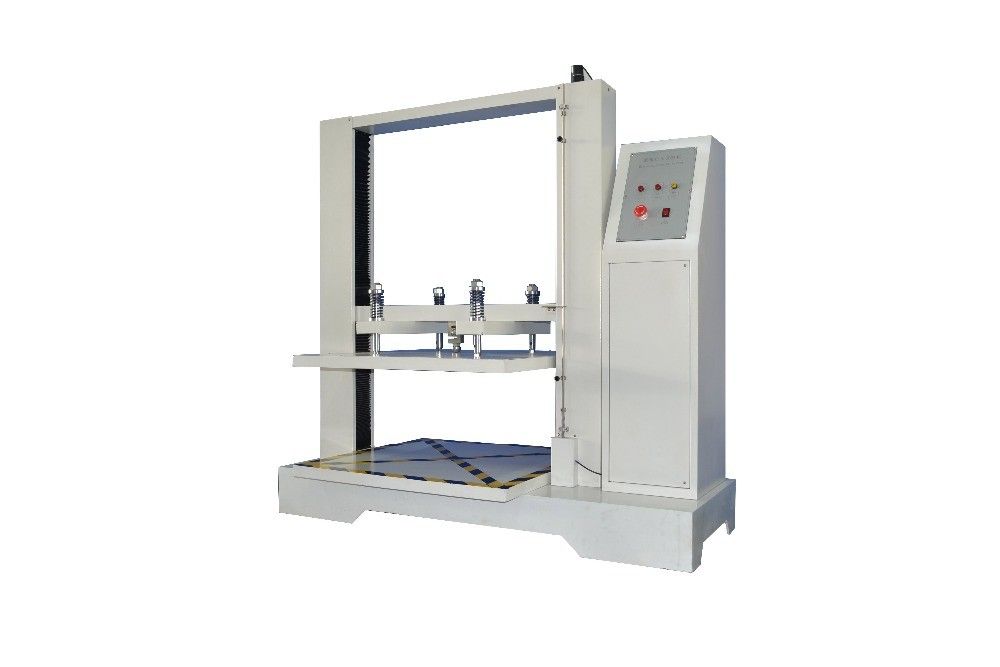

1.  Box Compression Tester with multi-function and high precision is designed to test the compressive strength of standard size corrugated box, or packages and containers made of other material with a compressive strength smaller than 100kN.



2. With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the testing machine has the following salient features: good parallelism, reliable measure precision and high return speed.



3. Box Compression Tester is capable of various functions for all parameters in standards, Such as parametric test,display, memory, statistics and print function; data processing function to gain the statistical result of all parameters directly; and automatic reset and fault diagnosis function and easy operation.



Standards: ISO2872, ISO2874, ASTM D642



Software Functions


1.Test & Control System is designed for PC Electronic Universal Testing Machines, PC Hydraulic Universal Testing Machines and PC Compression testers.



2.Can conduct tensile, compression, bending, shearing, tearing and peeling test; use PC and interface board for data collection, preservation, processing and printing test result; can calculate max force, yield strength, average peeling force, max deformation, yield point, elastic modulus and other parameters.



3.Can conduct curve graphics processing, multi-sensor support, video and image interface, flexible data processing, MS-ACCESS database support, making more powerful function of system.



Specification:



Capacity 1000,2000,5000kg
Resolution 1/200,000
Unit kg,lb,n,g switchable
Test space 100×100×100cm( it can be customized)
Drive System servo system,precision ball screw, DC variable speed drive system
Test speed 0.5~1000mm/min, keyboard inputing
Dimension 170×100×185cm
Weight 550kg
Power 1φ,220V/50Hz



Safety Device:



Stroke protection,Force and Elongation protection,Emergency stop device,Sensing device when specimen is destroyed.



Characteristics:



l. Adopting windows platform, all the parameter settings can be processed in the dialog box, and it operates easily.



2. Using a single-screen operation, do not need to switch the screen.



3. With three languges in simplified Chinese, traditional Chinese and English, the software interface can be switched easily.



4. Choosing translational, overlapping mode at the same time to make sure a number of curve date comparison.



5.With a variety of measurement units, measure in imperial&metric are switchable.



6.With automatic magnification function, in order to achieve the most appropriate size of the graphics.



Products image

Box Compression Testing Machine price/ Carton Box Compression Strength Tester 0Box Compression Testing Machine price/ Carton Box Compression Strength Tester 1Box Compression Testing Machine price/ Carton Box Compression Strength Tester 2

About us



Box Compression Testing Machine price/ Carton Box Compression Strength Tester 3



Q&A



Q: After an order is placed, when to deliver?

A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.



Q: What’s the payment term?

AT/T,L/C and other payment terms could be negotiated.



Q: What's the warranty and after-sales service?

A: 12 months warranty. Feedback to you within 24h and help you to repair your problem controller freely, even it's not from our factory.



Q: What the standards do you adopt?

A:We have been adopting the world standards and regulation such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, and CSA.



Q: What about the product' services and quality?

A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. And our Main clients : SGS, BV and Intertek.
