Product Details:
|
Test Space: | 500*500*500 | Unit: | N,KG,Lb Switchover |
---|---|---|---|
Force Range: | 1~100%FS | Capacity: | 1000,2000,5000kg |
Driver: | Sevor Motor | Warranty: | 1 Year |
Test Speed: | 0.5~500mm/min , Keyboard Inputing | Weight: | 550KG |
Resolution: | 1/250,000 | ||
Highlight: | paper testing machine,bursting strength tester |

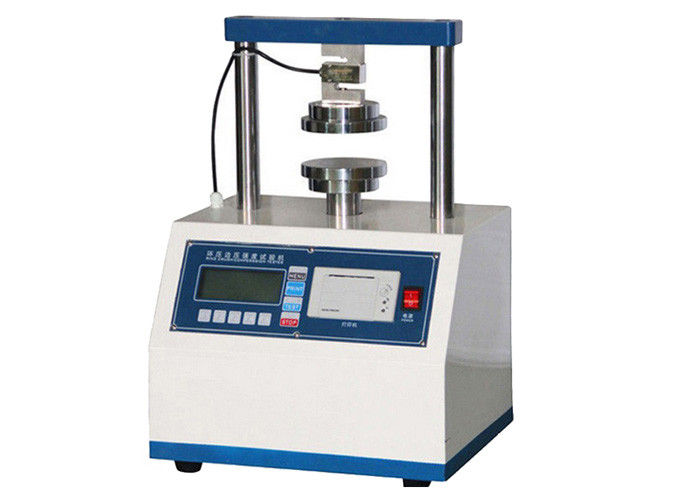

Sever Motor Computer Control Box Compression Test Machine With Low Price
About the machine:
1. Digital Packaging Material Compressive Strength Testing Machine is used for measuring the pressure strength of boxes,cartons, packaging containers, etc.
2. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test ,
3. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.
Features of Carton Box Compression Tester
1. Gantry structure design, double ball screw, parallelism is good, good stability, long service life;
2. The use of AC system control, the use of the latest segmentation technology, the instrument positioning accuracy, fast response, saving the test time and improve the test efficiency;
3. Over-range alarm function, protection of precision sensors;
4. Using high-speed ARM processor, a high degree of automation, data acquisition fast, automatic measurement, intelligent judgment function, safe and reliable;
5. Using 32-bit high-precision AD converter (resolution of up to 1 / 10,000,000) and high-precision load cell to ensure that the instrument force data collection of the rapidity and accuracy;
6. Can be connected to computer software, with real-time display compression curve function and data analysis tube function;
Corresponding standard :
Aesting Standard: GB/T4857.4 GB/T4857.16 ISO2872,ASTM D642
Manufacturing Practices: GB/T16491,TAPPI-T804,JIS-Z0212
Applicable Industry:
Applicable to all factories and enterprises, technical supervision departments, the commodity inspection authorities, research institutes and other departments for testing and researching.
Specification:
Capacity | 1000,2000,5000kg |
Resolution | 1/200,000 |
Unit | kg,lb,n,g switchable |
Test space | 100×100×100cm( it can be customized) |
Drive System | servo system,precision ball screw, DC variable speed drive system |
Test speed | 0.5~1000mm/min, keyboard inputing |
Dimension | 170×100×185cm |
Weight | 550kg |
Power | 1φ,220V/50Hz |
Safety Device:
Stroke protection,Force and Elongation protection,Emergency stop device,Sensing device when specimen is destroyed.
Software Functions:
1. Computer Control 1000KG Carton Box Compression Paper Test Instruments use windows working platform, set all parameter with dialog forms and operate easy;
2. Computer Control 1000KG Carton Box Compression Paper Test Instruments use a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7. Computer Control 1000KG Carton Box Compression Paper Test Instruments With many units of measurement, the metric system and british system can switch;
QUESTION AND ANSWERS:
Q. Are you manufacturer or trading company?
A: We are professional manufacturer for making testing machine, charpy testing machine,
broaching machine, temperature champer, etc for many years.
Q. What is your payment terms?
A:We accept TT, West Union, L/C, and other payment terms.
Q. What is your delivery time?
A: Generally is about 10 days for standard testing machine, but for non-standard machines, it needs
to be customized.
Q. Can you accept customers' inspection or third party inspection?
A:Yes, we totally accept inspection before shipment. Welcome to our factory.
Q. Why choose your company?
A: We are manufacturing testing machines for more than 10 years, and our products have exported
all the world. We constantly study and research new projects, and some of our products have won
patents. We also get the CE, ISO certificates. High quality products and service are our main center.
Because professionl, its leading. Thanks.
