Product Details:
|
| Capacity: | 2000N | Accuracy: | 0.01kg |
|---|---|---|---|
| Platen Dimension: | 100×100mm(or Customize By User Needs) | Test Stroke: | 90mm (or Customize By User Needs) |
| Test Speed: | 12.7mm/min | Return Function: | Self-return After Test Finishing |
| Weight: | 40kg | Power: | 1φ,220V/50Hz |
| High Light: | paper testing equipment,paper testing machine |
||
2000KN Multifunctional Edge Crush Test Machine , Edge Crush Resistance Tester With accuracy 0.01
Description:
Paper board edge crush tester cardboard paper test machine can do a full range of testing, which includes Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.
Uses :
This tester is used for testing the ring crush strength of the paperboard. with the properaccessories (optional), it's also available to test the column compress, ring crush, concora crush and adhension strength of the corrugated board
Design standard:
TAPPI -T472 JIS -P8126
Product features:
1,Mechatronics modern design concept, compact structure, nice appearance, easy maintenance.
2,Adopting high precison weighing sensor fixed on upper platen, to ensure colleting data rapidly and accurately.
3,Controlled by computer, with software, can display the curves of pressure force and deflection in time, also can save, manage and print the data.
4,Finishing test, the measuring head can revert automatically.
5,Equipped with micro-printer, convenient to print the result directly.
Characters:
1. Microprocessor control, automatically carry the test according to testing requests. Protect
2. press sensor through the protection switch for over- loading. Analyzing the group of testing data and to show the maximum, minimum, average, standard deviation by LCD, print out the data.
Specification:
|
Capacity |
2000N |
| Accuracy | 0.01kg |
| Platen dimension | 100×100mm(or customize by user needs) |
| Test stroke | 90mm (or customize by user needs) |
| Test speed | 12.7mm/min |
| Return function | self-return after test finishing |
| Weight | 40kg |
| Power | 1φ,220V/50Hz |

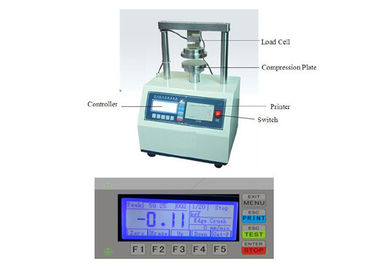

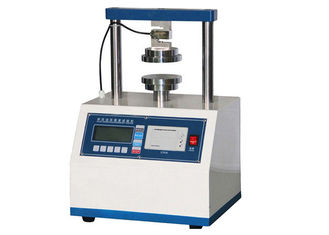

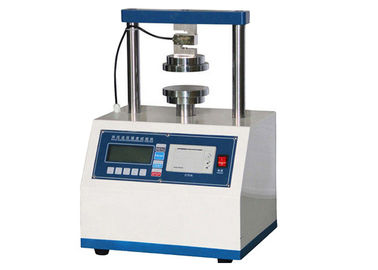

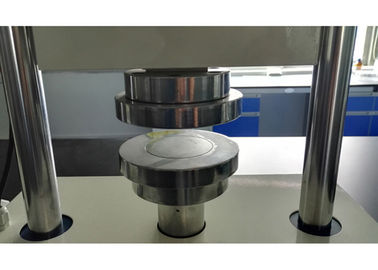

photo show:

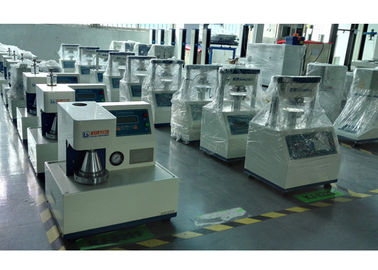

About our factory:
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing,marketing all kinds of environmental equipment.Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
To strengthen the quality awareness,perfect management system,improve product credit,meet customers increasing requirements, our company brought into ISO9001:2008 international quality management system and obtained the certificate: N0006997-1. Our company will continue to develop, innovate and keep faith. We combine with the international testing syandards and the specific demands of customers that industry.
FAQ:
Q: Are you a factory or a trading company?
A: We are professional testing equipment manufacturer.
Q:When can I get the price?
A: Usually we quote within 12 hours after we get your enquiry
Q: What are your Delivery terms?
A: We accept EXW, FOB, CFR, CIF, CPT. You can choose the one which is most convenient or cost effective for you.
Q: What is the payement terms?
A: T/T bank transfer, L/C, western union, we suggest your side to pay online of alibaba by credit card, and trade assurance.
Q: What about the after-sale service?
A: Guarantee period is 14 months, after the warranty, we also provide life-long paid repair or service.
