Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display

Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display
Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display

Large Image :  Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display

Product Details:
Place of Origin: Dongguan
Brand Name: LIYI
Certification: CE ISO
Model Number: WEW-300B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Pending negotiation
Packaging Details: plywood case
Delivery Time: 5-20days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 100 units per month

Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display

Description
Power: Electronic Usage: Strength Testing Machine
Certificate: CE ISO Weight: 150kg
Test Force: 300KN Displacement Measurement Resolution: 0.01 Mm
High Light:

digital tensile testing machine

,

electrical testing equipment

Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display



Product Description

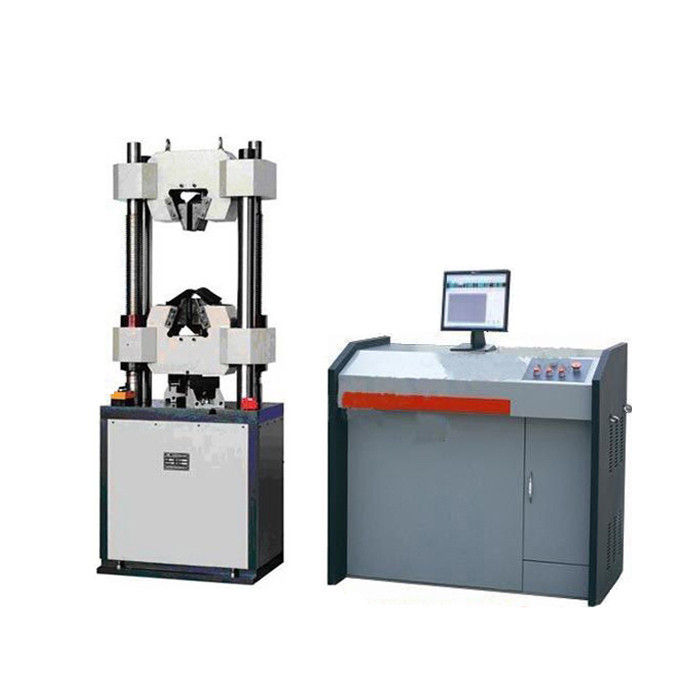

LYWEW-300B 300ton CE standard hydraulic tensile press machine host adopt the cylinder under the host. It is mainly used for metal, nonmetal tensile, compression, bending test, etc. Suitable for metallurgy, construction, light industry, aviation, space, material, universities and colleges, scientific research units, and other fields.



2.1 the host
Host adopt the cylinder under host, stretching space is located at the top of the host, compression, bending test space between the host beam under the above and the workbench



2.2 the transmission system
Under beam lifting motor reducer, chain drive mechanism, screw pair drive, realize the tensile, compression space adjustment



specifications



Max. Load capacity 300KN
Test force measurement range 6-300 kN
Accuracy of Test force display ±1%
The piston stroke 200mm
The piston movement speed 50 mm/min
Displacement measurement resolution 0.01 mm
Displacement measurement accuracy ±1%
The max tensile test space 550 mm(Including the piston stroke)
The max compression space 500 mm
The flat sample clamp thickness 40mm (pull clamps, customized)

Clamping width



40mm
Round clamping diameter φ6-φ26 mm
The compression plate size 170*170mm
The clamping way Hydraulic clamping
The bending roller spacing 30-350mm
The piston stroke 250mm
Power supply Three phase 380V±10%V,50Hz



Product Effects





Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 0



Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 1



Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 2Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 3





Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 4





Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 5Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 6Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 7



Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 8



Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 9









Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 10



Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 11



Company Information



LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 12



Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 13




Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 14


Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 15
Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 15

Hydraulic Universal Testing Machine ±1% Accuracy Of Test Force Display 17

Our Services


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.



1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.



2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.



3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
