Product Details:
|
| Power: | Electronic | Max. Test Force: | 20KN |
|---|---|---|---|
| Ways Of Operate: | 0.4%-100%(2%-100%) | Test Force Accuracy: | ±1%(0.5%) |
| Accuracy: | Class 1 | Min. Resolution Test Force: | 0.01N |
| Deformation Accuracy: | Better Than ±1%(0.5%) | Tensile Test Space: | 550mm |
| High Light: | digital tensile testing machine,electrical testing equipment |
||

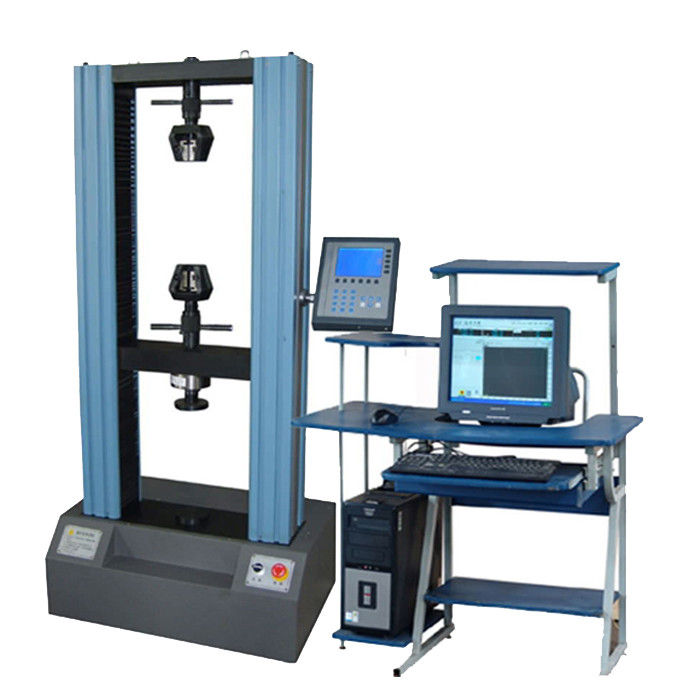

2T Computer Control Electronic Universal Testing Machine 550mm Tensile Test Space
There are five key reasons worth sharing with illustrations from real customers.
1. Ease of use.
2. Configured to your needs.
3. Competitively priced.
4. Customer centric.
5. Accuracy.
Brief Introductions:
This machine adopts Japan's Shimadzu technical. Widely used in metal and nonmetal
materials tensile, compression , shear and bending test. With different fixtures can do the fasteners tensile
shear and bending test.
Functions:
1.This series are ideals for testing the tension, compression, bending and peeling of rubber ,plastic, textiles,
electric wires, cables, network rope, wire, metal material ,etc. It can measure the tensile strength,bend strengthpeeling strength,elongation,and and can print the curve of force-time,force-displacement and the testing reports automatically.
2.Computer closed-loop control, change testing force stages automatically , save the test results automatically;In processing it can switch the appropriate measuring range by the load automatically;test resultcan be arbitrary accessed and simulated reproduction at any moment; several specimens characteristic curve can be superimposed by a number of different colors; test curves can be tracked to show at any moment,
any segment of the curve can be enlarged to be analysed; it is stopped if the specimen be breaked, overload, over-current automatically.
| Main technical specification | WDW-200 |
| Structure type | Door-type |
| Max. test force | 20KN |
| Ways of operate | computer controlled |
| Load measurement range | 0.4%-100%(2%-100%) |
| Test force accuracy | ±1%(0.5%) |
| Deformation deviation | ±1% |
| Accuracy | class 1 |
| Min. resolution test force | 0.01N |
| Crosshead displacement accuracy | ±1%(0.5%) |
| Deformation accuracy | better than ±1%(0.5%) |
| Speed range | 0.01-300mm/min |
| Tensile test space | 550mm |
| Compression test space | 600mm |
| Test space of restructuring | servo motor and timing belt |
| Appearance | according to the national standardS GB/T 2611 |
| Protections | overload protection and limit protectionGrip |
| Grip type | according to the clients' demand |
Product Effects
Company Information
LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
