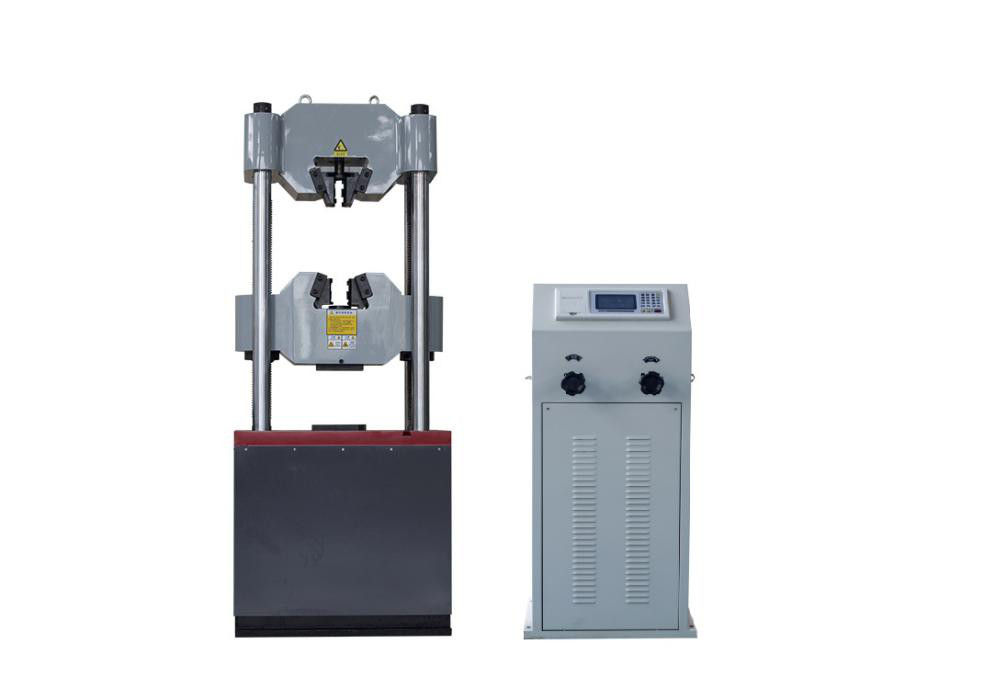

300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke

China 300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke supplier
300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke supplier 300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke supplier 300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke supplier 300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke supplier 300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke supplier

Large Image :  300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke

Product Details:

Place of Origin: Dongguan
Brand Name: LIYI
Certification: ASTM
Model Number: H-300D

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Pending negotiation
Packaging Details: plywood case
Delivery Time: 5-20days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Power: Electronic Test Force Accuracy: ±1%
Displacement Resolution: 0.01mm Deformation Test Accuracy: ±0.5%
Bending Test Branch Space: 450 Mm Piston Stroke: 250mm
Clamp Mthod: Built-in Hydraulic Clamp Built-in Hydraulic Clamp: 6500kg

300 Ton Universal Tensile and Compression Strength Testing Machine 250mm Piston Stroke


Product Description


1. Material Compression Testing Apparatus is mainly used to execute the tension, compression, bending, shearing etc. test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances.

2. The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression andbending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.

3. Material Compression Testing Apparatus adopts Load cell measure load, use computer control & display load.



Specifications



Tester Model LYH-300D LYH-600D LYH-1000D LYH-2000D
Max load(kN) 300 600 1000 2000
Test range 6KN-300kN 12KN-600kN 20KN-1000kN 40KN-2000kN
Test force accuracy ±1%
Displacement resolution 0.01mm
Deformation test accuracy ±0.5%
Constant force/ displacement controlling accuracy

SV<10%FS, less than ±1.0% of SV

SV≥10%FS, less than ±0.5% of SV

Deformation rate control accuracy

Rate <0.05%FS, less than ±2.0% of SV

Rate ≥0.05%FS, less than ±0.5% of SV

Max drawing space 800mm 800mm 850mm 800mm
Max compressing space 700mm 700mm 700mm 700mm
Flat sample clamp thickness 0-15mm 0-15mm 0-40mm 0-60mm
Round sample clamp diameter φ6-φ26mm φ13-φ40mm φ13-φ60mm φ15-φ70mm
Bending test branch space 450 mm
Branch width 140mm
Branch diameter 30mm
Piston Stroke 250mm
Clamp method Built-in Hydraulic clamp
Outer demension Machine 990×600×2435mm 990×600×2453mm 1100×770×2490mm

1160×1100×2600mm

Oil source 1100×700×950mm
Complete weight 2800kg 3000kg 4700kg 6500kg



Product Effects



300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke



300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke





300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke



300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke



300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke



300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke



300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke





300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke



300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke



Company Information



LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 12 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke



300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke

300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke

300 Ton Universal Tensile Machine / Compression Strength Testing Equipment 250mm Piston Stroke

Our Services


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.



1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.



2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.



3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
