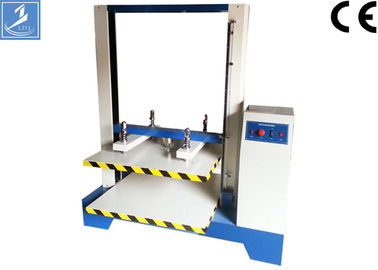

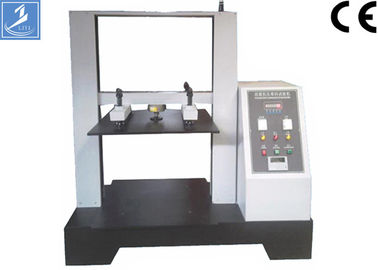

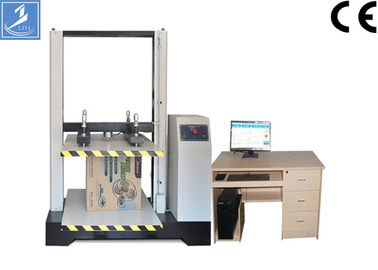

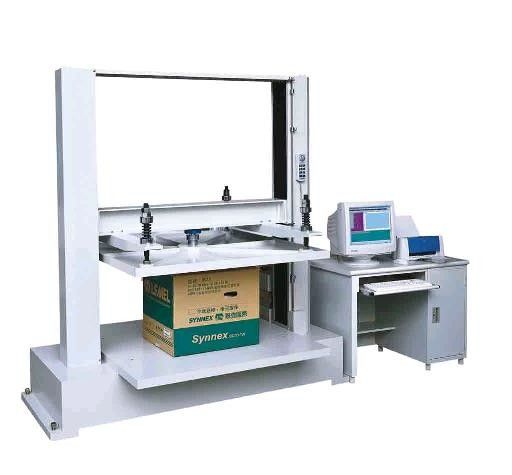

1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester

China 1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester supplier
1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester supplier 1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester supplier 1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester supplier 1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester supplier 1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester supplier

Large Image :  1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester

Product Details:

Place of Origin: Dongguan
Brand Name: LIYI
Certification: ISO
Model Number: 8210

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Pending negotiation
Packaging Details: plywood case
Delivery Time: 5-20 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 100 units per month
Contact Now
Detailed Product Description
Power: Electronic, 220V/50Hz Usage: Drop Tester
Capacity: 1000kg Resolution: 1/250,000
Force Range: 1~100%FS Test Space: 500*500*500mm
Test Speed: 0.5~500mm/min Dimension: 170*100*185cm
Weight: About 200kg Safety Device: Stroke Protection

Electrical Resistant Paper Box Compression Tester Machine / Paper Testing Instruments



Uses:



Corrugated Carton resist compression tester is used for measuring the pressure strength of cartons, containers, etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.



Design Standard:



TAPPI-T804,JIS-Z0212,ISO2872,NF H13-001,CNS 2236/3511



Characteristics:



l. Adopting windows platform, all the parameter settings can be processed in the dialog box, and it operates easily.

2. Using a single-screen operation, do not need to switch the screen.

3. With three languges in simplified Chinese, traditional Chinese and English, the software interface can be switched easily.

4. Choosing translational, overlapping mode at the same time to make sure a number of curve date comparison.

5.With a variety of measurement units, measure in imperial&metric are switchable.

6.With automatic magnification function, in order to achieve the most appropriate size of the graphics.

7.With an advanced design of machine structure which have strong rigidness and small volume but light weight.

8. Pressure Tester for paper packing box can do test of compression strength, stack strength and peak value.



Specifications:



Capacity 1000kg
Resolution 1/250,000
Force range 1~100%FS
Unit kg,lb,n,g switchable
Test space 500×500×500mm
Drive System servo system,precision ball screw, DC variable speed drive system
Test speed 0.5~500mm/min, keyboard inputing
Dimension 170×100×185cm
Weight About 200kg
Power 1φ,220V/50Hz
Safety Device

Stroke protection,Force and Elongation protection,Emergency stop device,

Sensing device when specimen is destroyed.





Software Functions:



1. Use windows working platform, set all parameter with dialog forms and operate easy;

2. Using a single screen operation, do not need to change the screen;

3. Have simplified Chinese, traditional Chinese and English three languages,switch conveniently;

4. Plan test sheet mode freely;

5. Test data can be directly appeared in the screen;

6. Compare multiple curve data through translation or contrast ways;

7. With many units of measurement, the metric system and british system can switch;

8. Have automatic calibration function;

9. Corrugated Carton resist compression tester Have user-defined test method function

10.Have test data arithmetic analysis function

11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;



Product Effects

1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester



1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester



1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester



1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester







1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester



1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester



Company Information



LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.



1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester



1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester



1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester



1000kg Capacity Paper Testing Instruments Electrical Resistant Paper Box Compression Tester



Our Services



If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-con.



1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

3.Commitment:We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



4.Good Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
