Product Details:
|
| Warranty: | 12 Months | Power: | Electronic, 1PH, AC220V, 50/60Hz |
|---|---|---|---|
| Test Speed: | 0.1-500mm/min | Accessories: | Computer, Printer, System Operation Manual |
| Dimension: | 58*58*125cm | Capacity: | 2,5,10,20,50,100,200,500kg |
| Load Resolution: | 1/250,000 | Accuracy: | ±0.5% |
| Optional Accessories: | Stretcher, Air Clamp | Weight: | 70kg |
| High Light: | 500 kg Tensile Strength Measuring Instrument,200kg Pull Force Testing Machine |
||

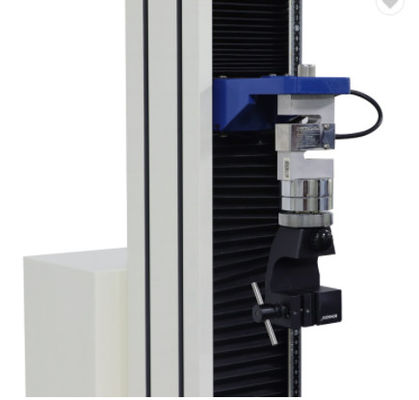

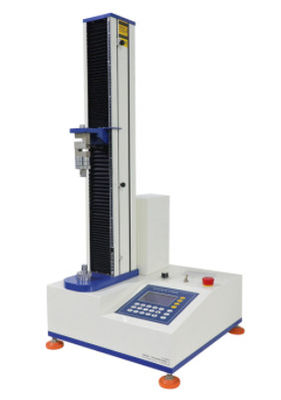

Tensile Strength Measuring Instrument Pulling Force Testing Equipment Tension Machine
This machine also known as a materials testing machine , it is applicable to testing tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, ect.
| Model | LY-1065 | LY-1068 |
| Range of speed | 0.1~500mm/min | 50~500 mm/min |
| Motor | Panasonic sevor motor | AC motor |
| Resolution | 1/250,000 | 1/150,000 |
| Capacity choice | 1, 2, 5,10, 20, 50,100, 200, 500 kg optional | |
| Stroke | 850 mm (can be customized) | |
| Accuracy | ± 0.5 % | |
| Force relative error | ± 0.5 % | |
| Displacement relative error | ± 0.5 % | |
| Test speed relative error | ± 0.5 % | |
| Effective testing space | 120 mm | |
| Accessories | Computer, printer, system operation manual | |
| Optional accessories | Stretcher, air clamp | |
| Operation method | Windows operation | |
| Weight | 70 kg | |
| Dimension | (W * D * H) 58 * 58 * 145 cm | |
| Power | 1 PH, AC 220 V, 50/60 Hz | |
| Stroke protection | Machinery, computer double protection, prevent over preset | |
| Force protection | system setting | |
| Emergency stop device | Handling emergencies | |
