Product Details:
|
| Metal Cylinder Inner Section Area: | 100 ± 0.2 Cm^2 (inner Diameter Is 112.8±0.2mm ) | Cylinder Height: | 50 Mm |
|---|---|---|---|
| Quantitive Absorption Paper: | 200~250 G/m^2 | Absorption Rate: | 75 Mm/10 Min |
| Smooth Metal Roller: | Width: 200 ± 0.5 Mm; Weight: 10 ± 0.5 Kg | Environmental Conditions: | Temperature: 20~40°c; Relative Humidity: < 85% |
| Outside Dimension(L×W×H): | 510×400×365 Mm | Method: | COBB Absorption |
| Highlight: | paper testing equipment,paper testing machine |
||
500mm Cylinder Paper Testing Equipment ISO535-1991 with COBB Absorption
Product Introduction:
Quickly detail :
|
Metal cylinder Inner section Area |
100 ± 0.2 cm^2 (inner diameter is 112.8±0.2mm ) |
|
Cylinder height |
50 mm |
|
Quantitive Absorption Paper |
200~250 g/m^2 |
|
Absorption Rate |
75 mm/10 min |
|
Smooth Metal Roller |
Width: 200 ± 0.5 mm; Weight: 10 ± 0.5 Kg |
|
Environmental Conditions |
Temperature: 20~40°c; Relative Humidity: < 85% |
Design standard: ISO535—1991,GB/T1540—1989
Uses:
Paper 500mm Cylinder COBB Absorption Tester is mainly used for determination of sized paper and cardboard including surface water imbibition of the
corrugated cardboard. The instrument is determination of absorbent paper and cardboard surface, but is
notsuitable for accurate evaluation of paper or paperboard writing performance.
Features:
The value of paper and cardboard surface water absorbing capacity (Cobb): the unit area of paper and cardboard in a certain pressure and temperature, within the time specified the absorption of water by surface to g /m2 meter. The specific formula is as follows: C = (G2 - G1) x 100. (C - value of Cobb water absorption; G2 - the sample quality after absorbing water; G1 - the sample quality before absorbing water) Paper and cardboard absorbing tester is the conventional instrument of the paper and cardboard surface water absorption test, also called the weight of paper surface absorption tester. The instrument adopts Cobb test method of the various methods in the absorption test, it is also called Cobb absorption tester.
Specifications:
|
Model
|
LY-8310 |
|
Metal cylinder Inner section Area
|
100 ± 0.2 cm^2 (inner diameter is 112.8±0.2mm ) |
|
Cylinder height
|
50 mm |
|
Quantitive Absorption Paper
|
200~250 g/m^2 |
|
Absorption Rate
|
75 mm/10 min |
|
Smooth Metal Roller
|
Width: 200 ± 0.5 mm; Weight: 10 ± 0.5 Kg |
|
Environmental Conditions
|
Temperature: 20~40°c; Relative Humidity: < 85% |
|
Outside dimension(L×W×H)
|
510×400×365 mm |
|
Weight
|
30 Kg |

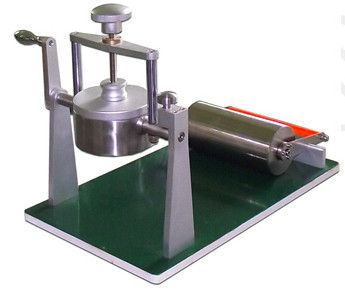

Picture:
